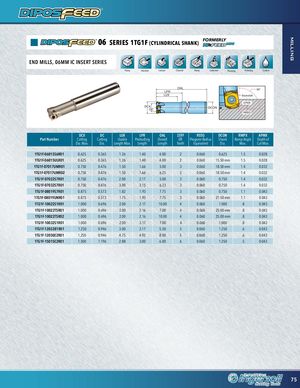

06 SERIES 1TG1F FORMERLY
(CYLINDRICAL SHANK)
END MILLS, 06MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
OAL LPR LUX DCX DC
DCON
90° Backdraft APMX REEQ
| DCX | DC | LUX | LPR | OAL | ZEFF | REEQ | DCON | RMPX | APMX | ||
| Part Number Cutting | Cutting | Usable | Protruding | Overall | Eff. | Program Radius | Shank | Ramp Angle | Depth of | ||
| Dia. Max. | Dia. | Length Max. | Length | Length | Teeth | Equivalent | Dia. | Max. | Cut Max. | ||
| 1TG1F-06015S6R01 | 0.625 | 0.365 | 1.26 | 1.40 | 4.00 | 2 | 0.060 | 0.625 | 1.5 | 0.028 | |
| 1TG1F-06015ULR01 | 0.625 | 0.365 | 1.26 | 1.40 | 4.00 | 2 | 0.060 | 15.50 mm | 1.5 | 0.028 | |
| 1TG1F-07017UMR01 | 0.750 | 0.476 | 1.50 | 1.66 | 5.00 | 3 | 0.060 | 18.50 mm | 1.4 | 0.032 | |
| 1TG1F-07017UMR02 | 0.750 | 0.476 | 1.50 | 1.66 | 6.25 | 3 | 0.060 | 18.50 mm | 1.4 | 0.032 | |
| 1TG1F-07022S7R01 | 0.750 | 0.476 | 2.00 | 2.17 | 5.00 | 3 | 0.060 | 0.750 | 1.4 | 0.032 | |
| 1TG1F-07032S7R01 | 0.750 | 0.476 | 3.00 | 3.15 | 6.23 | 3 | 0.060 | 0.750 | 1.4 | 0.032 | |
| 1TG1F-08019S7R01 | 0.875 | 0.573 | 1.82 | 1.93 | 7.75 | 3 | 0.060 | 0.750 | 1.1 | 0.043 | |
| 1TG1F-08019UNR01 | 0.875 | 0.573 | 1.75 | 1.93 | 7.75 | 3 | 0.060 | 21.50 mm | 1.1 | 0.043 | |
| 1TG1F-10022S1R01 | 1.000 | 0.696 | 2.00 | 2.17 | 10.00 | 4 | 0.060 | 1.000 | .8 | 0.043 | |
| 1TG1F-10022T5R01 | 1.000 | 0.696 | 2.00 | 2.16 | 7.00 | 4 | 0.060 | 25.00 mm | .8 | 0.043 | |
| 1TG1F-10022T5R02 | 1.000 | 0.696 | 2.00 | 2.16 | 10.00 | 4 | 0.060 | 25.00 mm | .8 | 0.043 | |
| 1TG1F-10032S1R01 | 1.000 | 0.696 | 2.00 | 3.17 | 7.00 | 4 | 0.060 | 1.000 | .8 | 0.043 | |
| 1TG1F-1203281R01 | 1.250 | 0.946 | 3.00 | 3.17 | 5.50 | 5 | 0.060 | 1.250 | .6 | 0.043 | |
| 1TG1F-12050E2R01 | 1.250 | 0.946 | 4.75 | 4.92 | 8.00 | 5 | 0.060 | 1.250 | .6 | 0.043 | |
| 1TG1F-15015E2R01 | 1.500 | 1.196 | 2.88 | 3.00 | 6.00 | 6 | 0.060 | 1.250 | .5 | 0.043 |
