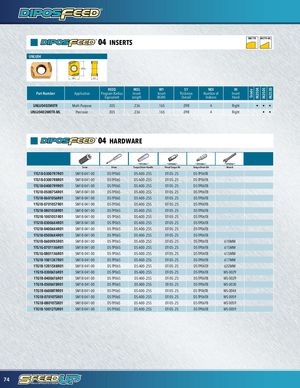

Каталог Ingersoll новинки 2021 - страница 74
Навигация
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2013 - 2014
Общий каталог Ingersoll 2016 - 2017
Каталог Ingersoll инструмент для нарезания резьбы
Общий каталог Ingersoll 2014
04 INSERTS MOTR MOTR-ML
UNLU04
INSL
W1 S1
REEQ INSL W1 S1 NOI IH
| Part Number | Application | Program Radius | Insert | Insert | Thickness | Number of | Insert | |||||
| Equivalent | Length | Width | Overall | Indexes | Hand | |||||||
| UNLU0402M0TR | Multi-Purpose | .035 | .236 | .165 | .098 | 4 | Right | • • • | ||||
| UNLU0402M0TR-ML | Precision | .035 | .236 | .165 | .098 | 4 | Right | • • |
04 HARDWARE
| **OPTIONAL** | **OPTIONAL** | **OPTIONAL** | **OPTIONAL** | |||||
| Screw | Driver | Torque Driver Handle | Preset Torque Bit | Torque Driver Bit | Wrench | |||
| 1TG1B-03007R7R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-03007R8R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-04007R9R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-05007S4R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-06010S6R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-07010S7R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-08010S8R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-10010S1R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-03006X4R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-04006X4R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-05006X4R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | - | ||
| 1TG1B-06009X5R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | 610MM | ||
| 1TG1G-07011X6R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | 615MM | ||
| 1TG1G-08011X6R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | 615MM | ||
| 1TG1B-10013X7R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | 617MM | ||
| 1TG1B-12015X8R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | 622MM | ||
| 1TG1B-03006T6R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0029 | ||
| 1TG1B-04006T6R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0029 | ||
| 1TG1B-05006T8R01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0030 | ||
| 1TG1B-06008TRR01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0044 | ||
| 1TG1B-07010TSR01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0059 | ||
| 1TG1B-08010TSR01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0059 | ||
| 1TG1B-10012TUR01 | SM18-041-00 | DS-TP06S | DS-A00-.25S | DT-05-.25 | DS-TP06TB | WS-0059 |
