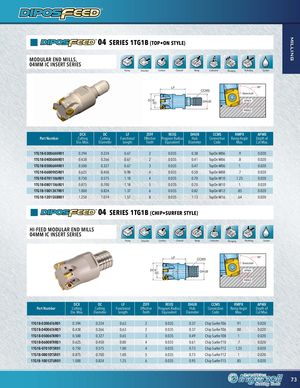

Каталог Ingersoll новинки 2021 - страница 73
Навигация
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2013 - 2014
Общий каталог Ingersoll 2016 - 2017
Каталог Ingersoll инструмент для нарезания резьбы
Общий каталог Ingersoll 2014
MODULAR END MILLS,
04MM IC INSERT SERIES
04 SERIES 1TG1B
(TOP•ON STYLE)
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF 90° CCMS Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | |
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code Max. | Cut Max. | ||
| 1TG1B-03006X4R01 | 0.394 | 0.224 | 0.67 | 2 | 0.035 | 0.38 | TopOn M06 | .9 | 0.020 |
| 1TG1B-04006X4R01 | 0.438 | 0.266 | 0.67 | 2 | 0.035 | 0.41 | TopOn M06 | .8 | 0.020 |
| 1TG1B-05006X4R01 | 0.500 | 0.327 | 0.67 | 3 | 0.035 | 0.47 | TopOn M06 | 1 | 0.020 |
| 1TG1B-06009X5R01 | 0.625 | 0.450 | 0.98 | 4 | 0.035 | 0.50 | TopOn M08 | .7 | 0.020 |
| 1TG1B-07011X6R01 | 0.750 | 0.575 | 1.18 | 4 | 0.035 | 0.70 | TopOn M10 | 1.25 | 0.020 |
| 1TG1B-08011X6R01 | 0.875 | 0.700 | 1.18 | 5 | 0.035 | 0.70 | TopOn M10 | 1 | 0.020 |
| 1TG1B-10013X7R01 | 1.000 | 0.824 | 1.37 | 6 | 0.035 | 0.82 | TopOn M12 | .85 | 0.020 |
| 1TG1B-12015X8R01 | 1.250 | 1.074 | 1.57 | 8 | 0.035 | 1.13 | TopOn M16 | .64 | 0.020 |
04 SERIES 1TG1B
(CHIP•SURFER STYLE)
HI-FEED MODULAR END MILLS
04MM IC INSERT SERIES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF 90° CCMS Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code | Max. | Cut Max. | ||
| 1TG1B-03006T6R01 | 0.394 | 0.224 | 0.63 | 2 | 0.035 | 0.37 | Chip Surfer T06 | .91 | 0.020 | |
| 1TG1B-04006T6R01 | 0.438 | 0.266 | 0.63 | 2 | 0.035 | 0.37 | Chip Surfer T06 | .88 | 0.020 | |
| 1TG1B-05006T8R01 | 0.500 | 0.327 | 0.65 | 3 | 0.035 | 0.49 | Chip Surfer T08 | 1 | 0.020 | |
| 1TG1B-06008TRR01 | 0.625 | 0.450 | 0.80 | 4 | 0.035 | 0.61 | Chip Surfer T10 | .7 | 0.020 | |
| 1TG1B-07010TSR01 | 0.750 | 0.575 | 1.00 | 4 | 0.035 | 0.73 | Chip Surfer T12 | 1.25 | 0.020 | |
| 1TG1B-08010TSR01 | 0.875 | 0.700 | 1.00 | 5 | 0.035 | 0.73 | Chip Surfer T12 | 1 | 0.020 | |
| 1TG1B-10012TUR01 | 1.000 | 0.824 | 1.25 | 6 | 0.035 | 0.95 | Chip Surfer T15 | .85 | 0.020 |
