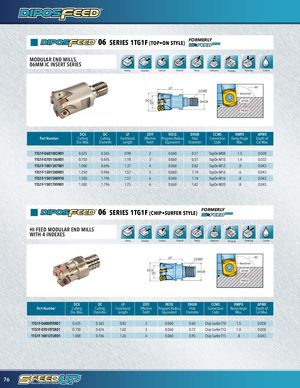

MODULAR END MILLS,
06MM IC INSERT SERIES
06 SERIES 1TG1F FORMERLY
(TOP•ON STYLE)
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF 90° CCMS Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code | Max. | Cut Max. | ||
| 1TG1F-06010X5R01 | 0.625 | 0.365 | 0.98 | 2 | 0.060 | 0.51 | TopOn M08 | 1.5 | 0.028 | |
| 1TG1F-07011X6R01 | 0.750 | 0.476 | 1.18 | 3 | 0.060 | 0.51 | TopOn M10 | 1.4 | 0.032 | |
| 1TG1F-10013X7R01 | 1.000 | 0.696 | 1.37 | 4 | 0.060 | 0.82 | TopOn M12 | .8 | 0.043 | |
| 1TG1F-12015X8R01 | 1.250 | 0.946 | 1.57 | 5 | 0.060 | 1.14 | TopOn M16 | .6 | 0.043 | |
| 1TG1F-15015X8R10 | 1.500 | 1.196 | 1.57 | 6 | 0.060 | 1.14 | TopOn M16 | .8 | 0.043 | |
| 1TG1F-15017X9R01 | 1.500 | 1.196 | 1.75 | 6 | 0.060 | 1.42 | TopOn M20 | .8 | 0.043 |
06 SERIES 1TG1F FORMERLY
(CHIP•SURFER STYLE)
HI-FEED MODULAR END MILLS
WITH 4 INDEXES
Facing Shoulder Contour Channel Ramp Corkscrew Plunging Pocketing Coolant
LF CCMS 90°
Backdraft
DCX DHUB APMX
DC REEQ
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | APMX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection | Ramp Angle | Depth of | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Diameter | Code | Max. | Cut Max. | ||
| 1TG1F-06008TRR01 | 0.625 | 0.365 | 0.83 | 2 | 0.060 | 0.60 | Chip Surfer T10 | 1.5 | 0.028 | |
| 1TG1F-07010TSR01 | 0.750 | 0.476 | 1.02 | 3 | 0.060 | 0.72 | Chip Surfer T12 | 1.4 | 0.028 | |
| 1TG1F-10012TUR01 | 1.000 | 0.706 | 1.26 | 4 | 0.060 | 0.95 | Chip Surfer T15 | .8 | 0.043 |
