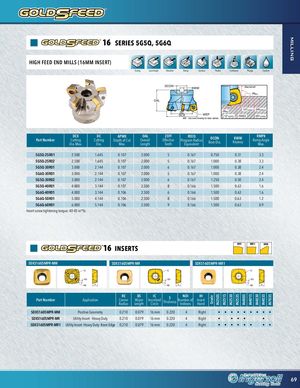

16 SERIES 5G5Q, 5G6Q
HIGH FEED END MILLS (16MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
DCON Backdraft KWW .08BS OAL .107 .245
DC .08 APMX1 APMX2
BS DCX WEP
12° REEQ 90°
KAPR1 KAPR2 WEP - See insert drawing for wiper options.
| DCX | DC | APMX | OAL | ZEFF | REEQ | KWW | RMPX | |||||
| Part Number | Cutting | Cutting | Depth of Cut | Overall | Effective | Program Radius | DCON | Ramp Angle | ||||
| Dia. Max. | Dia. | Length | Teeth | Bore Dia. | Keyway | Max. |
Max. Equivalent
| 5G5Q-25R01 | 2.500 | 1.645 | 0.107 | 2.000 | 5 | 0.167 | 0.750 | 0.31 | 3.3 |
| 5G5Q-25R02 | 2.500 | 1.645 | 0.107 | 2.000 | 5 | 0.167 | 1.000 | 0.38 | 3.3 |
| 5G5Q-30R01 | 3.000 | 2.144 | 0.107 | 2.000 | 6 | 0.167 | 1.000 | 0.38 | 2.4 |
| 5G6Q-30R01 | 3.000 | 2.144 | 0.107 | 2.000 | 5 | 0.167 | 1.000 | 0.38 | 2.4 |
| 5G5Q-30R02 | 3.000 | 2.144 | 0.107 | 2.000 | 6 | 0.167 | 1.250 | 0.50 | 2.4 |
| 5G5Q-40R01 | 4.000 | 3.144 | 0.107 | 2.500 | 8 | 0.166 | 1.500 | 0.63 | 1.6 |
| 5G6Q-40R01 | 4.000 | 3.144 | 0.106 | 2.500 | 6 | 0.166 | 1.500 | 0.63 | 1.6 |
| 5G6Q-50R01 | 5.000 | 4.144 | 0.106 | 2.500 | 8 | 0.166 | 1.500 | 0.63 | 1.2 |
| 5G6Q-60R01 | 6.000 | 5.144 | 0.106 | 2.500 | 9 | 0.166 | 1.500 | 0.63 | 0.9 |
Insert screw tightening torque: 40-45 in*lb.
16 INSERTS MR MR1 MM
SDXS1605MPR-MM SDXS1605MPR-MR SDXS1605MPR-MR1
| IC | IC | IC | |||
| BS | BS | BS | |||
| RE | S | RE | S | RE | S |
| RE | BS | IC | S | NOI | IH | |||
| Application Part Number Corner | Wiper | Inscribed | Thickness Number of | Insert | ||||
| Radius | Length | Circle | Indexes | Hand | ||||
| SDXS1605MPR-MM | Positive Geometry 0.210 | 0.079 | 16 mm | 0.220 | 4 | Right | • • • • • • • • • | |
| SDXS1605MPR-MR | Utility Insert - Heavy Duty 0.210 | 0.079 | 16 mm | 0.220 | 4 | Right | • | • • • • |
| SDXS1605MPR-MR1 | Utility Insert- Heavy Duty- Keen Edge 0.210 | 0.079 | 16 mm | 0.220 | 4 | Right | • • • • • • | • • |
