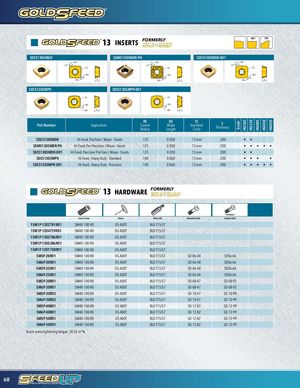

13 INSERTS FORMERLY 001 PH
SDES1305MDR SDMS1305MDR-PH SDES1305MDR-001
60° 60° 60°
12° 12° 12°
| IC | IC | IC |
| BS | BS | BS |
BS S BS S BS S
SDES1305MPR SDES1305MPR-001 IC IC BS BS
RE S RE S
RE BS IC S
| Part Number | Application Corner | Wiper | Inscribed | Thickness | ||
| Radius | Length | Circle | ||||
| SDES1305MDR | Hi-Feed, Flat Face / Wiper - Facets | .125 | 0.030 | 13 mm | .200 | • • |
| SDMS1305MDR-PH | Hi-Feed, Pos Precision / Wiper - Facets | .125 | 0.030 | 13 mm | .200 | • • • • • |
| SDES1305MDR-001 | Hi-Feed, Precision Flat Face / Wiper - Facets | .125 | 0.030 | 13 mm | .200 | • • |
| SDES1305MPR | Hi-Feed, Heavy Duty - Standard | .140 | 0.060 | 13 mm | .200 | • • • • |
| SDES1305MPR-001 | Hi-Feed, Heavy Duty - Precision | .140 | 0.060 | 13 mm | .200 | • • • • • |
13 HARDWARE FORMERLY
**OPTIONAL**
| Insert Screw | Driver | Driver Bit | Retention Bolt | Coolant Bolt | ||||
| 15M1P-1202781R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | - | - | |||
| 15M1P-12047S9R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | - | - | |||
| 15M1P-1502786R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | - | - | |||
| 15M1P-1505386R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | - | - | |||
| 15M1P-12017X8R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | - | - | |||
| 5M5P-20R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-06-48 | SD06-A6 | |||
| 5M6P-20R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-06-48 | SD06-A6 | |||
| 5M5P-25R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-06-48 | SD06-A6 | |||
| 5M6P-25R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-06-48 | SD06-A6 | |||
| 5M5P-30R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-08-47 | SD-08-92 | |||
| 5M6P-30R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-08-47 | SD-08-92 | |||
| 5M5P-30R02 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-10-47 | SD-10-99 | |||
| 5M6P-30R02 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-10-47 | SD-10-99 | |||
| 5M5P-40R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-12-82 | SD-12-99 | |||
| 5M6P-40R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-12-82 | SD-12-99 | |||
| 5M5P-50R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-12-82 | SD-12-99 | |||
| 5M6P-50R01 | SM40-100-R0 | DS-A00T | BLD T15/S7 | SD-12-82 | SD-12-99 |
Insert screw tightening torque: 30-35 in*lb.
