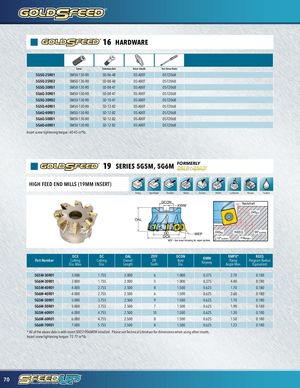

16 HARDWARE
| Screw Retention Bolt | Driver Handle | Torx Driver Blade | ||
| 5G5Q-25R01 | SM50-130-R0 | SD-06-48 | DS-A00T | DS-T206B |
| 5G5Q-25R02 | SM50-130-R0 | SD-08-48 | DS-A00T | DS-T206B |
| 5G5Q-30R01 | SM50-130-R0 | SD-08-47 | DS-A00T | DS-T206B |
| 5G6Q-30R01 | SM50-130-R0 | SD-08-47 | DS-A00T | DS-T206B |
| 5G5Q-30R02 | SM50-130-R0 | SD-10-47 | DS-A00T | DS-T206B |
| 5G5Q-40R01 | SM50-130-R0 | SD-12-82 | DS-A00T | DS-T206B |
| 5G6Q-40R01 | SM50-130-R0 | SD-12-82 | DS-A00T | DS-T206B |
| 5G6Q-50R01 | SM50-130-R0 | SD-12-82 | DS-A00T | DS-T206B |
| 5G6Q-60R01 | SM50-130-R0 | SD-12-82 | DS-A00T | DS-T206B |
Insert screw tightening torque: 40-45 in*lb.
19 SERIES 5G5M, 5G6M FORMERLY
HIGH FEED END MILLS (19MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
DCON Backdraft KWW .043 BS OAL
| DC | WEP | .043BS | REEQ | 90°KAPR2 | |
| DCX | 12° | .118 |
KAPR1 APMX1 WEP - See insert drawing for wiper options.
| DCX | DC | OAL | ZEFF | DCON | KWW | RMPX* | REEQ | |
| Part Number | Cutting | Cutting | Overall | Eff. | Bore | Keyway | Ramp | Program Radius |
| Dia. Max. | Dia. | Length | Teeth | Dia. | Angle Max. | Equivalent | ||
| 5G5M-30R01 | 3.000 | 1.755 | 2.000 | 6 | 1.000 | 0.375 | 2.70 | 0.180 |
| 5G6M-30R01 | 3.000 | 1.755 | 2.000 | 5 | 1.000 | 0.375 | 4.40 | 0.180 |
| 5G5M-40R01 | 4.000 | 2.755 | 2.500 | 8 | 1.500 | 0.625 | 1.70 | 0.180 |
| 5G6M-40R01 | 4.000 | 2.755 | 2.500 | 6 | 1.500 | 0.625 | 2.60 | 0.180 |
| 5G5M-50R01 | 5.000 | 3.755 | 2.500 | 9 | 1.500 | 0.625 | 1.70 | 0.180 |
| 5G6M-50R01 | 5.000 | 3.755 | 2.500 | 7 | 1.500 | 0.625 | 1.90 | 0.180 |
| 5G5M-60R01 | 6.000 | 4.755 | 2.500 | 10 | 1.500 | 0.625 | 1.30 | 0.180 |
| 5G6M-60R01 | 6.000 | 4.755 | 2.500 | 8 | 1.500 | 0.625 | 1.50 | 0.180 |
| 5G6M-70R01 | 7.000 | 5.755 | 2.500 | 8 | 1.500 | 0.625 | 1.23 | 0.180 |
* All of the above data is with insert SDES1906MDR installed. Please see Technical Literature for dimensions when using other inserts. Insert screw tightening torque: 72-77 in*lb.
