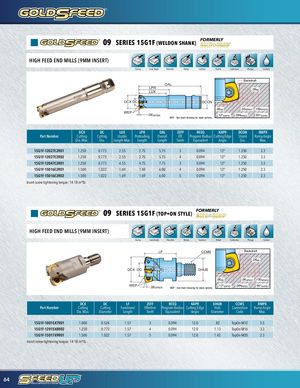

09 SERIES 15G1F FORMERLY
(WELDON SHANK)
HIGH FEED END MILLS (9MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
Backdraft OAL LPR .06 LUX BS DCX DC DCON
.06BS .06APMX1 .150APMX2
WEP
.06APMX 12° .094 90°
KAPR1 REEQ KAPR2
WEP - See insert drawing for wiper options.
| DCX | DC | LUX | LPR | OAL | ZEFF | REEQ | KAPR | DCON | RMPX | |
| Part Number Cutting | Cutting | Usable | Protruding | Overall | Eff. | Program Radius | Cutting Edge | Shank | Ramp Angle | |
| Dia. Max. | Dia. | Length Max. | Length | Length | Teeth | Equivalent | Angle | Dia. | Max. | |
| 15G1F-12027E2R01 | 1.250 | 0.773 | 2.55 | 2.75 | 5.75 | 3 | 0.094 | 12° | 1.250 | 3.3 |
| 15G1F-12027E2R02 | 1.250 | 0.773 | 2.55 | 2.75 | 5.75 | 4 | 0.094 | 12° | 1.250 | 3.3 |
| 15G1F-12047E2R01 | 1.250 | 0.773 | 4.55 | 4.75 | 7.75 | 3 | 0.094 | 12° | 1.250 | 3.3 |
| 15G1F-15016E2R01 | 1.500 | 1.022 | 1.69 | 1.69 | 6.00 | 4 | 0.094 | 12° | 1.250 | 2.3 |
| 15G1F-15016E2R02 | 1.500 | 1.022 | 1.69 | 1.69 | 6.00 | 5 | 0.094 | 12° | 1.250 | 2.3 |
Insert screw tightening torque: 14-18 in*lb.
09 SERIES 15G1F FORMERLY
(TOP•ON STYLE)
HIGH FEED END MILLS (9MM INSERT)
| Facing | Lead Angle | Shoulder | Ramp | Contour | Corkscrew | Plunge | Coolant | ||
| LF | CCMS | Backdraft |
.06BS
DCX DC DHUB
| .06BS | .06APMX1 | .150APMX2 | |||
| WEP | .06 | 12° | .094 | 90° |
APMX KAPR1 REEQ KAPR2
WEP - See insert drawing for wiper options.
| DCX | DC | LF | ZEFF | REEQ | KAPR | DHUB | CCMS | RMPX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Cutting Edge | Hub | Connection | Ramp Angle | ||
| Dia. Max. | Diameter | Length | Teeth | Equivalent | Angle | Diameter | Code | Max. | ||
| 15G1F-10015X7R01 | 1.000 | 0.524 | 1.57 | 3 | 0.094 | 12.0 | .82 | TopOn M12 | 5.5 | |
| 15G1F-12015X8R02 | 1.250 | 0.773 | 1.57 | 4 | 0.094 | 12.0 | 1.13 | TopOn M16 | 3.3 | |
| 15G1F-15017X9R01 | 1.500 | 1.022 | 1.57 | 5 | 0.094 | 12.0 | 1.42 | TopOn M20 | 2.3 |
Insert screw tightening torque: 14-18 in*lb.
