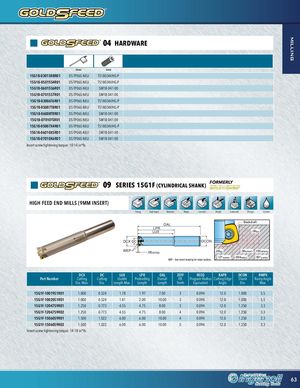

04 HARDWARE
Driver Screw
| 15G1B-03015R8R01 | DS-TP06S-NEU | TS18034I/HG-P |
| 15G1B-05015S4R01 | DS-TP06S-NEU | TS18034I/HG-P |
| 15G1B-06015S6R01 | DS-TP06S-NEU | SM18-041-00 |
| 15G1B-07015S7R01 | DS-TP06S-NEU | SM18-041-00 |
| 15G1B-03006T6R01 | DS-TP06S-NEU | TS18034I/HG-P |
| 15G1B-05007T8R01 | DS-TP06S-NEU | TS18034I/HG-P |
| 15G1B-06008TRR01 | DS-TP06S-NEU | SM18-041-00 |
| 15G1B-07010TSR01 | DS-TP06S-NEU | SM18-041-00 |
| 15G1B-05007X4R01 | DS-TP06S-NEU | TS18034I/HG-P |
| 15G1B-06010X5R01 | DS-TP06S-NEU | SM18-041-00 |
| 15G1B-07010X6R01 | DS-TP06S-NEU | SM18-041-00 |
Insert screw tightening torque: 10-14 in*lb.
09 SERIES 15G1F FORMERLY
(CYLINDRICAL SHANK)
HIGH FEED END MILLS (9MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
Backdraft OAL LPR LUX .06 BS DCX DC DCON
WEP .06 .06 .06 .150
APMX BS APMX1 APMX2
12° KAPR1 .094REEQ 90°KAPR2
WEP - See insert drawing for wiper options.
| DCX | DC | LUX | LPR | OAL | ZEFF | REEQ | KAPR | DCON | RMPX | |
| Part Number Cutting | Cutting | Usable | Protruding | Overall | Eff. | Program Radius | Cutting Edge | Shank | Ramp Angle | |
| Dia. Max. | Dia. | Length Max. | Length | Length | Teeth | Equivalent | Angle | Dia. | Max. | |
| 15G1F-10019S1R01 | 1.000 | 0.524 | 1.78 | 1.97 | 7.00 | 3 | 0.094 | 12.0 | 1.000 | 5.5 |
| 15G1F-10020S1R01 | 1.000 | 0.524 | 1.81 | 2.00 | 10.00 | 3 | 0.094 | 12.0 | 1.000 | 5.5 |
| 15G1F-12047S9R01 | 1.250 | 0.773 | 4.55 | 4.75 | 8.00 | 3 | 0.094 | 12.0 | 1.250 | 3.3 |
| 15G1F-12047S9R02 | 1.250 | 0.773 | 4.55 | 4.75 | 8.00 | 4 | 0.094 | 12.0 | 1.250 | 3.3 |
| 15G1F-15060S9R01 | 1.500 | 1.022 | 6.00 | 6.00 | 10.00 | 4 | 0.094 | 12.0 | 1.250 | 2.3 |
| 15G1F-15060S9R02 | 1.500 | 1.022 | 6.00 | 6.00 | 10.00 | 5 | 0.094 | 12.0 | 1.250 | 2.3 |
Insert screw tightening torque: 14-18 in*lb.
