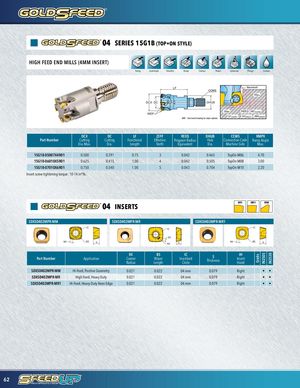

04 SERIES 15G1B
(TOP•ON STYLE)
HIGH FEED END MILLS (4MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
LF CCMS DCX DC DHUB WEP WEP - See insert drawing for wiper options.
Backdraft .02 BS
.02 REEQ 90°
BS KAPR2
| 12° | .02 | .065 | |
| KAPR1 | APMX1 | APMX2 |
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS | RMPX | |
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection Code | Ramp Angle | |
| Dia. Max. | Dia. | Length | Teeth | Equivalent | Dia. | Machine Side | Max. | |
| 15G1B-05007X4R01 | 0.500 | 0.291 | 0.75 | 3 | 0.042 | 0.465 | TopOn M06 | 4.70 |
| 15G1B-06010X5R01 | 0.625 | 0.415 | 1.00 | 4 | 0.042 | 0.505 | TopOn M08 | 3.00 |
| 15G1B-07010X6R01 | 0.750 | 0.540 | 1.00 | 5 | 0.043 | 0.704 | TopOn M10 | 2.20 |
Insert screw tightening torque: 10-14 in*lb.
04 INSERTS MR MR1 MM
SDXS0402MPR-MM SDXS0402MPR-MR SDXS0402MPR-MR1
IC IC IC
BS
BS RE S S BS RE S
RE
| RE | BS | IC | S | IH | |||
| Part Number | Application Corner | Wiper | Inscribed | Thickness | Insert | ||
| Radius | Length | Circle | Hand | ||||
| SDXS0402MPR-MM | Hi-Feed, Positive Geometry | 0.021 | 0.022 | 04 mm | 0.079 | Right | • • |
| SDXS0402MPR-MR | High Feed, Heavy Duty | 0.021 | 0.022 | 04 mm | 0.079 | Right | • • |
| SDXS0402MPR-MR1 | Hi-Feed, Heavy-Duty Keen Edge | 0.021 | 0.022 | 04 mm | 0.079 | Right | • • |
