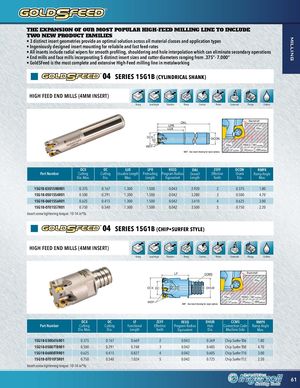

THE EXPANSION OF OUR MOST POPULAR HIGH-FEED MILLING LINE TO INCLUDE
TWO NEW PRODUCT FAMILIES
- 3 distinct insert geometries provide an optimal solution across all material classes and application types
- Ingeniously designed insert mounting for reliabile and fast feed-rates
- All inserts include radial wipers for smooth profiling, shouldering and hole interpolation which can eliminate secondary operations
- End mills and face mills incorporating 5 distinct insert sizes and cutter diameters ranging from .375”- 7.000”
- GoldSFeed is the most complete and extensive High-Feed milling line in metalworking
04 SERIES 15G1B
(CYLINDRICAL SHANK)
HIGH FEED END MILLS (4MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
OAL Backdraft LPR LUX .02BS DCX DCON DC
WEP .02BS REEQ 90°
KAPR2
| 12° | .02 | .065 | |
| KAPR1 | APMX1 | APMX2 |
WEP - See insert drawing for wiper options.
| DCX | DC | LUX | LPR | REEQ | OAL | ZEFF | DCON | RMPX | |
| Part Number Cutting | Cutting | Usuable Length | Protruding | Program Radius | Overall | Effective | Shank | Ramp Angle | |
| Dia. Max. | Dia. | Max. | Length | Equivalent | Length | Teeth | Dia. | Max. | |
| 15G1B-03015R8R01 | 0.375 | 0.167 | 1.300 | 1.500 | 0.043 | 2.920 | 2 | 0.375 | 1.80 |
| 15G1B-05015S4R01 | 0.500 | 0.291 | 1.300 | 1.500 | 0.042 | 3.280 | 3 | 0.500 | 4.70 |
| 15G1B-06015S6R01 | 0.625 | 0.415 | 1.300 | 1.500 | 0.042 | 3.410 | 4 | 0.625 | 3.00 |
| 15G1B-07015S7R01 | 0.750 | 0.540 | 1.300 | 1.500 | 0.042 | 3.500 | 5 | 0.750 | 2.20 |
Insert screw tightening torque: 10-14 in*lb.
04 SERIES 15G1B
(CHIP•SURFER STYLE)
HIGH FEED END MILLS (4MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
LF CCMS Backdraft
.02 BS DCX DC DHUB
.02 REEQ 90°
BS KAPR2
WEP 12° .02APMX1 .065APMX2
KAPR1 WEP - See insert drawing for wiper options.
| DCX | DC | LF | ZEFF | REEQ | DHUB | CCMS RMPX | ||
| Part Number Cutting | Cutting | Functional | Effective | Program Radius | Hub | Connection Code | Ramp Angle | |
| Dia. Max. | Dia. | Length | Teeth | Equivalent | Dia. | Machine Side | Max. | |
| 15G1B-03006T6R01 | 0.375 | 0.167 | 0.669 | 2 | 0.043 | 0.369 | Chip Surfer T06 | 1.80 |
| 15G1B-05007T8R01 | 0.500 | 0.291 | 0.748 | 3 | 0.042 | 0.485 | Chip Surfer T08 | 4.70 |
| 15G1B-06008TRR01 | 0.625 | 0.415 | 0.827 | 4 | 0.042 | 0.605 | Chip Surfer T10 | 3.00 |
| 15G1B-07010TSR01 | 0.750 | 0.540 | 1.024 | 5 | 0.042 | 0.725 | Chip Surfer T12 | 2.20 |
