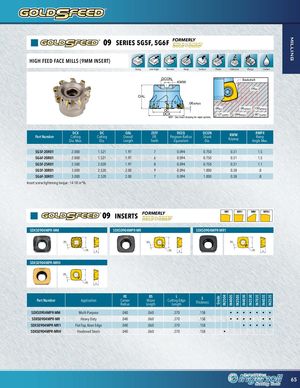

09 SERIES 5G5F, 5G6F FORMERLY
HIGH FEED FACE MILLS (9MM INSERT)
Facing Lead Angle Shoulder Ramp Contour Pocket Corkscrew Plunge Coolant
DCON Backdraft KWW .06BS OAL .06APMX
| DC | .06BS | .06APMX1 | .150APMX2 | |
| DCX | 12° | .094 | 90° |
KAPR1 REEQ KAPR2
WEP - See insert drawing for wiper options.
| DCX | DC | OAL | ZEFF | REEQ | DCON | KWW | RMPX | |
| Part Number | Cutting | Cutting | Overall | Eff. | Program Radius | Shank | Ramp | |
| Dia. Max. | Dia. | Length | Teeth | Equivalent | Dia. | Keyway | Angle Max. | |
| 5G5F-20R01 | 2.000 | 1.521 | 1.97 | 7 | 0.094 | 0.750 | 0.31 | 1.5 |
| 5G6F-20R01 | 2.000 | 1.521 | 1.97 | 6 | 0.094 | 0.750 | 0.31 | 1.5 |
| 5G5F-25R01 | 2.500 | 2.020 | 1.97 | 8 | 0.094 | 0.750 | 0.31 | 1.1 |
| 5G5F-30R01 | 3.000 | 2.520 | 2.00 | 9 | 0.094 | 1.000 | 0.38 | .8 |
| 5G6F-30R01 | 3.000 | 2.520 | 2.00 | 7 | 0.094 | 1.000 | 0.38 | .8 |
Insert screw tightening torque: 14-18 in*lb.
09 INSERTS FORMERLY MR MR1 MM MRH
SDXS0904MPR-MM SDXS0904MPR-MR SDXS0904MPR-MR1
| BS | L | BS | L | BS | L | |||
| RE | S | RE | S | RE | S |
SDXS0904MPR-MRH
BS L RE S
RE BS L S
| Part Number Application | Corner | Wiper | Cutting Edge | Thickness | ||
| Radius | Length | Length | ||||
| SDXS0904MPR-MM | Multi-Purpose | .040 | .060 | .370 | .158 | • • • • • • • |
| SDXS0904MPR-MR | Heavy-Duty | .040 | .060 | .370 | .158 | • • • • • • |
| SDXS0904MPR-MR1 | Flat-Top, Keen Edge | .040 | .060 | .370 | .158 | • • • • • |
| SDXS0904MPR-MRH | Hardened Steels | .040 | .060 | .370 | .158 | • |
