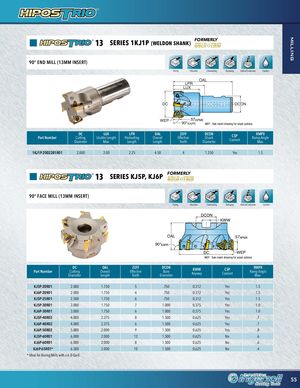

13 SERIES 1KJ1P FORMERLY
(WELDON SHANK)
90° END MILL (13MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant
OAL LPR LUX
DC DCON WEP .57APMX 90°KAPR WEP - See insert drawing for wiper options.
| DC | LUX | LPR | OAL | ZEFF | DCON | CSP | RMPX | |||||||
| Part Number | Cutting | Usable Length | Protruding | Overall | Effective | Shank | Coolant | Ramp Angle | ||||||
| Diameter | Max. | Length | Length | Teeth | Diameter | Max. | ||||||||
| 1KJ1P-2002281R01 | 2.000 | 2.00 | 2.25 | 4.50 | 4 | 1.250 | Yes | 1.5 |
13 SERIES KJ5P, KJ6P FORMERLY
90° FACE MILL (13MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant
DCON KWW
OAL .57 APMX 90°KAPR DC WEP WEP - See insert drawing for wiper options.
| DC | OAL | ZEFF | DCON | KWW | CSP | RMPX | |
| Part Number | Cutting | Overall | Effective | Bore | Keyway | Coolant | Ramp Angle |
| Diameter | Length | Teeth | Diameter | Max. | |||
| KJ5P-20R01 | 2.000 | 1.750 | 5 | .750 | 0.312 | Yes | 1.5 |
| KJ6P-20R01 | 2.000 | 1.750 | 4 | .750 | 0.312 | Yes | 1.5 |
| KJ5P-25R01 | 2.500 | 1.750 | 6 | .750 | 0.312 | Yes | 1.5 |
| KJ5P-30R01 | 3.000 | 1.750 | 7 | 1.000 | 0.375 | Yes | 1.0 |
| KJ6P-30R01 | 3.000 | 1.750 | 6 | 1.000 | 0.375 | Yes | 1.0 |
| KJ5P-40R02 | 4.000 | 2.375 | 8 | 1.500 | 0.625 | Yes | .7 |
| KJ6P-40R02 | 4.000 | 2.375 | 6 | 1.500 | 0.625 | Yes | .7 |
| KJ6P-50R02 | 5.000 | 2.000 | 9 | 1.500 | 0.625 | Yes | .8 |
| KJ5P-60R01 | 6.000 | 2.000 | 12 | 1.500 | 0.625 | No | .6 |
| KJ6P-60R01 | 6.000 | 2.000 | 8 | 1.500 | 0.625 | No | .6 |
| KJ6P-65R01* | 6.500 | 2.000 | 10 | 1.500 | 0.625 | No | .4 |
* Ideal for Boring Mills with a 6.0 Quill.
