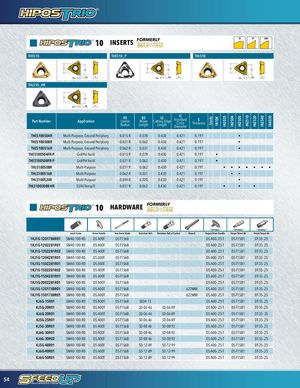

10 INSERTS FORMERLY R P HR
THES10 THES10_P THLS10
IC LE IC LE IC LE
BS RE S BS RE S BS RE S
THLS10_HR
IC LE
BS RE S
RE BS LE IC
| Part Number | Application | Corner | Wiper | Cutting Edge | Inscribed | S | ||
| Radius | Length | Length | Circle | Thickness |
Diameter
| THES100504R | Multi-Purpose; Ground Periphery | 0.015 R | 0.078 | 0.430 | 0.421 | 0.197 | • | |||||
| THES100508R | Multi-Purpose; Ground Periphery | 0.031 R | 0.062 | 0.430 | 0.421 | 0.197 | • | |||||
| THES100516R | Multi-Purpose; Ground Periphery | 0.062 R | 0.031 | 0.430 | 0.421 | 0.197 | • | |||||
| THES100504FR-P | Grd/Pol for Al | 0.015 R | 0.078 | 0.430 | 0.421 | 0.197 | • | |||||
| THES100508FR-P | Grd/Pol for Al | 0.031 R | 0.062 | 0.430 | 0.421 | 0.197 | • | |||||
| THLS100508R | Multi-Purpose | 0.031 R | 0.062 | 0.430 | 0.421 | 0.197 | • | • | • | • • • • | ||
| THLS100516R | Multi-Purpose | 0.062 R | 0.031 | 0.430 | 0.421 | 0.197 | • | • | ||||
| THLS100524R | Multi-Purpose | 0.094 R | 0.020 | 0.430 | 0.421 | 0.197 | • | |||||
| THLS100508R-HR | SS/Hi-Temp/Ti | 0.031 R | 0.062 | 0.430 | 0.421 | 0.197 | • | • | • |
10 HARDWARE FORMERLY
**OPTIONAL** **OPTIONAL** **OPTIONAL**
| Insert Screw Driver Handle | Torx Driver Blade | Retention Bolt | Retention Bolt w/Coolant | Wrench | Torque Driver Handle | Torque Driver Bit | Preset Torque Bit | |||||
| 1KJ1G-1201784R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1202281R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1202281R02 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1204281R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1502281R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1502281R02 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-1504281R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-2002281R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-12017X8R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | 622MM | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| 1KJ1G-15017X8R01 | SM40-100-R0 | DS-A00T | DS-T156B | - | - | 622MM | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-15R01 | SM40-100-R0 | DS-A00T | DS-T156B | SE04-15 | - | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ5G-20R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-06-46 | SD-06-89 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-20R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-06-46 | SD-06-89 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ5G-25R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-06-46 | SD-06-89 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ5G-30R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-08-46 | SD-08-92 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-30R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-08-46 | SD-08-92 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-30R02 | SM40-100-R0 | DS-A00T | DS-T156B | SD-08-46 | SD-08-92 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ5G-40R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-12-89 | SD-12-99 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-40R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-12-89 | SD-12-99 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 | |||
| KJ6G-50R01 | SM40-100-R0 | DS-A00T | DS-T156B | SD-12-89 | SD-12-99 | - | DS-A00-.25-T | DS-T15B1 | DT-35-.25 |
