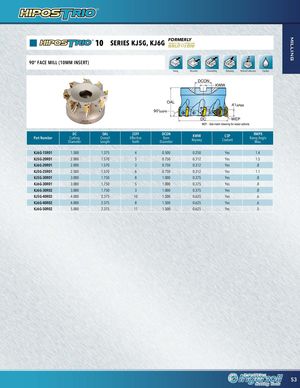

10 SERIES KJ5G, KJ6G FORMERLY
90° FACE MILL (10MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant
DCON KWW
OAL .41APMX 90°KAPR DC WEP WEP - See insert drawing for wiper options.
| DC | OAL | ZEFF | DCON | KWW | CSP | RMPX | |
| Part Number | Cutting | Overall | Effective | Bore | Keyway | Coolant | Ramp Angle |
| Diameter | Length | Teeth | Diameter | Max. | |||
| KJ6G-15R01 | 1.500 | 1.375 | 4 | 0.500 | 0.250 | Yes | 1.4 |
| KJ5G-20R01 | 2.000 | 1.570 | 5 | 0.750 | 0.312 | Yes | 1.5 |
| KJ6G-20R01 | 2.000 | 1.570 | 3 | 0.750 | 0.312 | Yes | .8 |
| KJ5G-25R01 | 2.500 | 1.570 | 6 | 0.750 | 0.312 | Yes | 1.1 |
| KJ5G-30R01 | 3.000 | 1.750 | 8 | 1.000 | 0.375 | Yes | .8 |
| KJ6G-30R01 | 3.000 | 1.750 | 5 | 1.000 | 0.375 | Yes | .8 |
| KJ6G-30R02 | 3.000 | 1.750 | 3 | 1.000 | 0.375 | Yes | .8 |
| KJ5G-40R02 | 4.000 | 2.375 | 10 | 1.500 | 0.625 | Yes | .6 |
| KJ6G-40R02 | 4.000 | 2.375 | 8 | 1.500 | 0.625 | Yes | .6 |
| KJ6G-50R02 | 5.000 | 2.375 | 11 | 1.500 | 0.625 | Yes | .5 |
