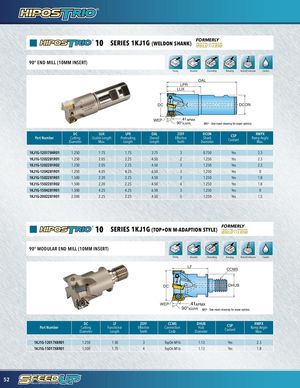

10 SERIES 1KJ1G FORMERLY
(WELDON SHANK)
90° END MILL (10MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant
OAL LPR LUX DC DCON WEP .41APMX 90°KAPR WEP - See insert drawing for wiper options.
| DC | LUX | LPR | OAL | ZEFF | DCON | CSP | RMPX | |
| Part Number Cutting | Usable Length | Protruding | Overall | Effective | Shank | Coolant | Ramp Angle | |
| Diameter | Max. | Length | Length | Teeth | Diameter | Max. | ||
| 1KJ1G-1201784R01 | 1.250 | 1.75 | 1.75 | 3.75 | 3 | 0.750 | Yes | 2.3 |
| 1KJ1G-1202281R01 | 1.250 | 2.05 | 2.25 | 4.50 | 2 | 1.250 | Yes | 2.3 |
| 1KJ1G-1202281R02 | 1.250 | 2.05 | 2.25 | 4.50 | 3 | 1.250 | Yes | 2.3 |
| 1KJ1G-1204281R01 | 1.250 | 4.05 | 4.25 | 6.50 | 3 | 1.250 | Yes | 0 |
| 1KJ1G-1502281R01 | 1.500 | 2.20 | 2.25 | 4.50 | 3 | 1.250 | Yes | 1.8 |
| 1KJ1G-1502281R02 | 1.500 | 2.20 | 2.25 | 4.50 | 4 | 1.250 | Yes | 1.8 |
| 1KJ1G-1504281R01 | 1.500 | 4.25 | 4.25 | 6.50 | 3 | 1.250 | Yes | 0 |
| 1KJ1G-2002281R01 | 2.000 | 2.25 | 2.25 | 4.50 | 5 | 1.250 | Yes | 1.5 |
10 SERIES 1KJ1G FORMERLY
(TOP•ON M-ADAPTION STYLE)
90° MODULAR END MILL (10MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant
LF CCMS
DC DHUB
WEP .41APMX 90°KAPR WEP - See insert drawing for wiper options.
| DC | LF | ZEFF | CCMS | DHUB | CSP | RMPX | |||||||
| Part Number | Cutting | Functional | Effective | Connection | Hub | Coolant | Ramp Angle | ||||||
| Diameter | Length | Teeth | Code | Diameter | Max. | ||||||||
| 1KJ1G-12017X8R01 | 1.250 | 1.50 | 3 | TopOn M16 | 1.13 | Yes | 2.3 | ||||||
| 1KJ1G-15017X8R01 | 1.500 | 1.75 | 4 | TopOn M16 | 1.13 | Yes | 1.8 |
