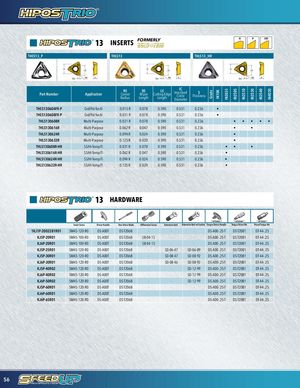

13 INSERTS FORMERLY R P HR
THES13_P THLS13 THLS13_HR
IC LE IC LE IC LE
BS RE S BS RE S BS RE S
RE BS LE IC
| Part Number | Application | Corner | Wiper | Cutting Edge | Inscribed | S | ||
| Radius | Length | Length | Circle | Thickness |
Diameter
| THES130604FR-P | Grd/Pol for Al | 0.015 R | 0.078 | 0.590 | 0.531 | 0.236 | • | |||
| THES130608FR-P | Grd/Pol for Al | 0.031 R | 0.078 | 0.590 | 0.531 | 0.236 | • | |||
| THLS130608R | Multi-Purpose | 0.031 R | 0.078 | 0.590 | 0.531 | 0.236 | • | • • • • | ||
| THLS130616R | Multi-Purpose | 0.062 R | 0.047 | 0.590 | 0.531 | 0.236 | • | • | ||
| THLS130624R | Multi-Purpose | 0.094 R | 0.024 | 0.590 | 0.531 | 0.236 | • | |||
| THLS130632R | Multi-Purpose | 0.125 R | 0.020 | 0.590 | 0.531 | 0.236 | • | |||
| THLS130608R-HR | SS/Hi-Temp/Ti | 0.031 R | 0.078 | 0.590 | 0.531 | 0.236 | • | • | • | |
| THLS130616R-HR | SS/Hi-Temp/Ti | 0.062 R | 0.047 | 0.590 | 0.531 | 0.236 | • | |||
| THLS130624R-HR | SS/Hi-Temp/Ti | 0.094 R | 0.024 | 0.590 | 0.531 | 0.236 | • | |||
| THLS130632R-HR | SS/Hi-Temp/Ti | 0.125 R | 0.020 | 0.590 | 0.531 | 0.236 | • |
13 HARDWARE
**OPTIONAL** **OPTIONAL** **OPTIONAL**
| Insert Screw Driver Handle | Torx Driver Blade | Differential Screw | Retention Bolt | Retention Bolt w/Coolant | Torque Driver Handle | Torque Driver Bit | Preset Torque Bit | |||||
| 1KJ1P-2002281R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ5P-20R01 | SM45-100-R0 | DS-A00T | DS-T206B | SB-04-15 | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-20R01 | SM45-100-R0 | DS-A00T | DS-T206B | SB-04-15 | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ5P-25R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | SD-06-47 | SD-06-89 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ5P-30R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | SD-08-47 | SD-08-92 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-30R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | SD-08-46 | SD-08-92 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ5P-40R02 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | SD-12-99 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-40R02 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | SD-12-99 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-50R02 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | SD-12-99 | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ5P-60R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-60R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 | |||
| KJ6P-65R01 | SM45-120-R0 | DS-A00T | DS-T206B | - | - | - | DS-A00-.25-T | DS-T20B1 | DT-44-.25 |
