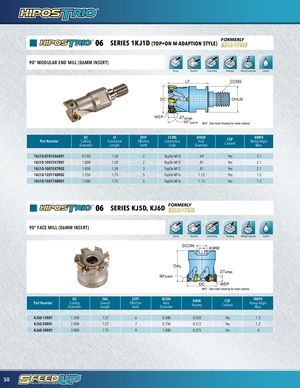

FORMERLY
06 SERIES 1KJ1D (TOP•ON M-ADAPTION STYLE)
90° MODULAR END MILL (06MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant

LF CCMS

DC DHUB

WEP .27APMX
90°KAPR WEP - See insert drawing for wiper options.

DC LF ZEFF CCMS DHUB RMPX
CSP
Part Number Cutting Functional Effective Connection Hub Ramp Angle
Coolant
Diameter Length Teeth Code Diameter Max.
1KJ1D-07015X6R01 0.750 1.50 2 TopOn M10 .69 Yes 3.1
1KJ1D-10015X7R01 1.000 1.50 2 TopOn M12 .81 Yes 2.1
1KJ1D-10015X7R02 1.000 1.50 3 TopOn M12 .81 Yes 2.1
1KJ1D-12017X8R02 1.250 1.75 5 TopOn M16 1.13 Yes 1.5
1KJ1D-15017X8R01 1.500 1.75 5 TopOn M16 1.13 Yes 1.3


06 SERIES KJ5D, KJ6D
FORMERLY


90° FACE MILL (06MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant

DCON
KWW

OAL
.27APMX
90°KAPR
DC WEP
WEP - See insert drawing for wiper options.

DC OAL ZEFF DCON RMPX
KWW CSP
Part Number Cutting Overall Effective Bore Ramp Angle
Keyway Coolant
Diameter Length Teeth Diameter Max.
KJ5D-15R01 1.500 1.57 6 0.500 0.250 Yes 1.3
KJ5D-20R01 2.000 1.57 7 0.750 0.312 Yes 1.2
KJ6D-30R01 3.000 1.75 9 1.000 0.375 Yes .4
