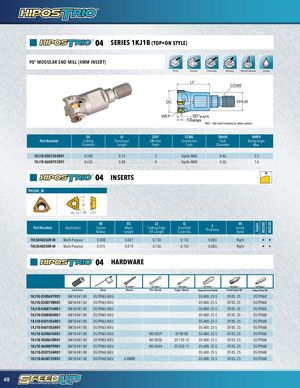

04 SERIES 1KJ1B (TOP•ON STYLE)
90° MODULAR END MILL (4MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant

LF
CCMS

DC DHUB

WEP 90°KAPR
.13APMX
WEP - See insert drawing for wiper options.

DC LF ZEFF CCMS DHUB RMPX
Part Number Cutting Functional Effective Connection Hub Ramp Angle
Diameter Length Teeth Code Diameter Max.
1KJ1B-05075X4R01 0.500 0.75 3 TopOn M06 0.46 2.5
1KJ1B-06087X5R01 0.625 0.88 4 TopOn M08 0.50 1.6
M
04 INSERTS
THLS04_M
IC

LE

RE S
BS


RE BS LE IC IH


IN2505
IN2530
Grade
S
Part Number Application Corner Wiper Cutting Edge Inscribed Insert
Thickness
Radius Length Eff. Length Circle Dia. Hand
THLS040202R-M Multi-Purpose 0.008 0.027 0.130 0.153 0.083 Right • •
THLS040204R-M Multi-Purpose 0.015 0.019 0.130 0.153 0.083 Right • •

04 HARDWARE

**OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL** **OPTIONAL**
Insert Screw Driver Wrench Thin Wrench Torque Wrench Torque Driver Handle Preset Torque Bit Torque Driver Bit
1KJ1B-03006R7R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-03007R8R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-04007S4R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-05008S4R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-05010S6R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-06010S6R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-03006T6R01 SM18-041-00 DS-TP06S-NEU - WS-0029 DT-90-08 DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-05006T8R01 SM18-041-00 DS-TP06S-NEU - WS-0030 DT-130-10 DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-06008TRR01 SM18-041-00 DS-TP06S-NEU - WS-0044 DT-250-13 DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-05075X4R01 SM18-041-00 DS-TP06S-NEU - - - DS-A00-.25-S DT-05-.25 DS-TP06B
1KJ1B-06087X5R01 SM18-041-00 DS-TP06S-NEU 610MM - - DS-A00-.25-S DT-05-.25 DS-TP06B
