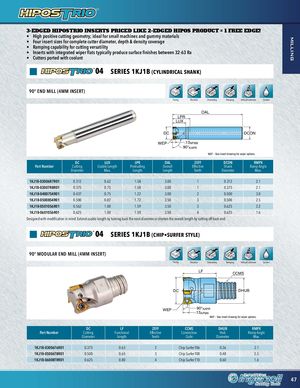

Каталог Ingersoll новинки 2021 - страница 47

3-EDGED HIPOSTRIO INSERTS PRICED LIKE 2-EDGED HIPOS PRODUCT = 1 FREE EDGE!
• High positive cutting geometry; ideal for small machines and gummy materials


milling
• Four insert sizes for complete cutter diameter, depth & density coverage
• Ramping capability for cutting versatility
• Inserts with integrated wiper flats typically produce surface finishes between 32-63 Ra
• Cutters ported with coolant
04 SERIES 1KJ1B (CYLINDRICAL SHANK)
90° END MILL (4MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant


OAL
LPR
LUX

DC DCON
WEP .13APMX
90°KAPR
WEP - See insert drawing for wiper options.

DC LUX LPR OAL ZEFF DCON RMPX
Part Number Cutting Usable Length Protruding Overall Effective Shank Ramp Angle
Diameter Max. Length Length Teeth Diameter Max.
1KJ1B-03006R7R01 0.312 0.62 1.58 3.00 1 0.312 2.1
1KJ1B-03007R8R01 0.375 0.75 1.58 3.00 1 0.375 2.1
1KJ1B-04007S4R01 0.437 0.75 1.22 3.00 2 0.500 3.0
1KJ1B-05008S4R01 0.500 0.87 1.72 3.50 3 0.500 2.5
1KJ1B-05010S6R01 0.562 1.00 1.59 3.50 3 0.625 2.2
1KJ1B-06010S6R01 0.625 1.00 1.59 3.50 4 0.625 1.6
Designed with modification in mind. Extend usable length by turning back the neck diameter or shorten the overall length by cutting off back end.

04 SERIES 1KJ1B (CHIP•SURFER STYLE)
90° MODULAR END MILL (4MM INSERT)
Facing Shoulder Channeling Ramping Helical/Corkscrew Coolant

LF
CCMS

DC DHUB


WEP 90°KAPR
.13APMX
WEP - See insert drawing for wiper options.

DC LF ZEFF CCMS DHUB RMPX
Part Number Cutting Functional Effective Connection Hub Ramp Angle
Diameter Length Teeth Code Diameter Max.
1KJ1B-03006T6R01 0.375 0.63 2 Chip Surfer T06 0.36 2.1
1KJ1B-05006T8R01 0.500 0.65 3 Chip Surfer T08 0.48 2.5
1KJ1B-06008TRR01 0.625 0.80 4 Chip Surfer T10 0.60 1.6
