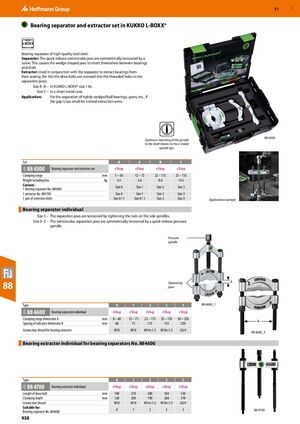

GBP 57 ​ Bearing separator and extractor set in KUKKO L-BOXX® L-BOXX Bearing separator of high-quality tool steel. Separator: The quick-release semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft. Extractor: Used in conjunction with the separator to extract bearings from their seating (for this the draw bolts are screwed into the threaded holes in the separation jaws). Size K–B – In KUKKO L-BOXX® size 136. Size C – In a sheet metal case. Application: For the separation of tightly wedged ball bearings, gears, etc., if the gap is too small for normal extraction arms. 88 4500 Optimum matching of the spindle to the shaft thanks to the 2-ended spindle tips. Set K A B C 88 4500 83U Bearing separator and extractor set eShop eShop eShop eShop Clamping range mm 5 – 60 12 – 75 22 – 115 25 – 155 Weight including box kg 4.3 5.6 8.6 14.2 Content: Size 0 Size 1 Size 2 Size 3 1 bearing separator No. 884600 1 extractor No. 884700 Size 0 Size 1 Size 2 Size 3 1 pair of extension bolts Size 0 / 1 Size 0 / 1 Size 2 Size 3 Application example Bearing separator individual ​ Size 5 – The separation jaws are tensioned by tightening the nuts on the side spindles. Size 0–3 – The semicircular separation jaws are symmetrically tensioned by a quick-release pressure spindle. Pressure spindle A 88 Separating jaws Type 0 1 2 3 5 88 4600_1 88 4600 83U Bearing separator individual eShop eShop eShop eShop eShop Clamping range dimension A mm 8 – 60 12 – 75 22 – 115 25 – 155 30 – 250 B Spacing of side pins dimension B mm 60 75 115 155 250 Connection thread for bearing extractor M10 M10 M14×1.5 M18×1.5 G3/4 88 4600_5 Bearing extractor individual for bearing separators No. 884600 ​ Type 0 1 2 3 5 88 4700 83U Bearing extractor individual eShop eShop eShop eShop eShop Length of draw bolt mm 180 270 280 360 530 Clamping depth mm 120 200 190 260 370 Connection thread M10 M10 M14×1.5 M18×1.5 G3/4 Suitable for: 0 1 2 3 5 88 4700 Bearing separator No. 884600. 938
