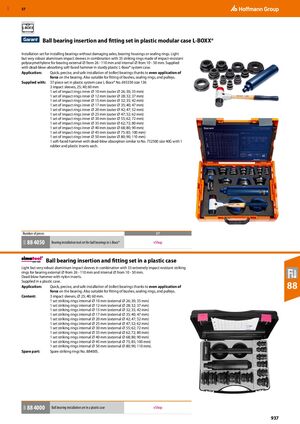

GBP 57 L-BOXX Ball bearing insertion and fitting set in plastic modular case L-BOXX® Installation set for installing bearings without damaging axles, bearing housings or sealing rings. Light but very robust aluminium impact sleeves in combination with 33 striking rings made of impact-resistant polyoxymethylene for bearing external ⌀ from 26 - 110 mm and internal ⌀ from 10 - 50 mm. Supplied with dead-blow-absorbing soft-faced hammer in sturdy plastic L-Boxx® system case. Application: Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys. Supplied with: 37-piece set in plastic system case L-Boxx® No. 693330 size 136 3 impact sleeves, 25; 40; 60 mm 1 set of impact rings inner ⌀ 10 mm (outer ⌀ 26; 30; 35 mm) 1 set of impact rings inner ⌀ 12 mm (outer ⌀ 28; 32; 37 mm) 1 set of impact rings inner ⌀ 15 mm (outer ⌀ 32; 35; 42 mm) 1 set of impact rings inner ⌀ 17 mm (outer ⌀ 35; 40; 47 mm) 1 set of impact rings inner ⌀ 20 mm (outer ⌀ 42; 47; 52 mm) 1 set of impact rings inner ⌀ 25 mm (outer ⌀ 47; 52; 62 mm) 1 set of impact rings inner ⌀ 30 mm (outer ⌀ 55; 62; 72 mm) 1 set of impact rings inner ⌀ 35 mm (outer ⌀ 62; 72; 80 mm) 1 set of impact rings inner ⌀ 40 mm (outer ⌀ 68; 80; 90 mm) 1 set of impact rings inner ⌀ 45 mm (outer ⌀ 75; 85; 100 mm) 1 set of impact rings inner ⌀ 50 mm (outer ⌀ 80; 90; 110 mm) 1 soft-faced hammer with dead-blow absorption similar to No. 752500 size 40G with 1 rubber and plastic inserts each. Number of pieces 37 88 4050 Bearing installation tool set for ball bearings in L-Boxx® eShop 81G ​ Ball bearing insertion and fitting set in a plastic case Light but very robust aluminium impact sleeves in combination with 33 extremely impact resistant striking rings for bearing external ⌀ from 26 - 110 mm and internal ⌀ from 10 - 50 mm. Dead-blow hammer with nylon inserts. Supplied in a plastic case. Application: Quick, precise, and safe installation of (roller) bearings thanks to even application of force on the bearing. Also suitable for fitting of bushes, sealing rings, and pulleys. 88 Content: 3 impact sleeves, ⌀ 25; 40; 60 mm. 1 set striking rings internal ⌀ 10 mm (external ⌀ 26; 30; 35 mm) 1 set striking rings internal ⌀ 12 mm (external ⌀ 28; 32; 37 mm) 1 set striking rings internal ⌀ 15 mm (external ⌀ 32; 35; 42 mm) 1 set striking rings internal ⌀ 17 mm (external ⌀ 35; 40; 47 mm) 1 set striking rings internal ⌀ 20 mm (external ⌀ 42; 47; 52 mm) 1 set striking rings internal ⌀ 25 mm (external ⌀ 47; 52; 62 mm) 1 set striking rings internal ⌀ 30 mm (external ⌀ 55; 62; 72 mm) 1 set striking rings internal ⌀ 35 mm (external ⌀ 62; 72; 80 mm) 1 set striking rings internal ⌀ 40 mm (external ⌀ 68; 80; 90 mm) 1 set striking rings internal ⌀ 45 mm (external ⌀ 75; 85; 100 mm) 1 set striking rings internal ⌀ 50 mm (external ⌀ 80; 90; 110 mm). Spare part: Spare striking rings No. 884005. 88 4000 86H Ball bearing installation set in a plastic case eShop 937
