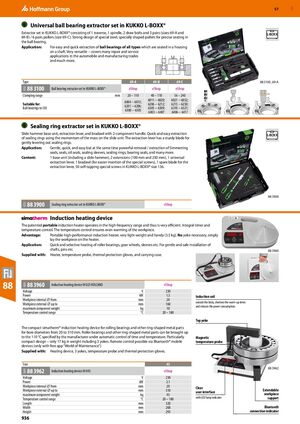

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 936

GBP 57 Universal ball bearing extractor set in KUKKO L-BOXX® Extractor set in KUKKO L-BOXX® consisting of 1 traverse, 1 spindle, 2 draw bolts and 3 pairs (sizes 69-A and L-BOXX 69-B) / 6 pairs pullers (size 69-C). Strong design of special steel, specially shaped pullers for precise seating in the ball bearing. Application: For easy and quick extraction of ball bearings of all types which are seated in a housing on a shaft. Very versatile − covers many repair and service applications in the automobile and manufacturing trades and much more. Type 69-A 69-B 69-C 88 3100_69-A 88 3100 83U Ball bearing extractor set in KUKKO L-BOXX® eShop eShop eShop Clamping range mm 20 – 110 40 – 110 56 – 240 6011 − 6020; 6021 − 6032; 6004 − 6013; Suitable for: 6206 − 6212; 6213 − 6230; 6201 − 6206; Ball bearings to ISO 6305 − 6309; 6310 − 6321; 6300 − 6305 6403 − 6407 6406 − 6417 Sealing ring extractor set in KUKKO L-BOXX® Slide hammer base unit, extraction lever, and bradawl with 2-component handle. Quick and easy extraction L-BOXX of sealing rings using the momentum of the mass on the slide unit. The extraction lever has a sturdy blade for gently levering out sealing rings. Application: Gentle, quick, and easy but at the same time powerful removal / extraction of Simmerring seals, seals, oil seals, sealing sleeves, sealing rings, bearing seals, and many more. Content: 1 base unit (including a slide hammer), 2 extensions (100 mm and 250 mm), 1 universal extraction lever, 1 bradawl (for easier insertion of the special screws), 1 spare blade for the extraction lever, 50 self-tapping special screws in KUKKO L-BOXX® size 136. 88 3900 88 3900 Sealing ring extractor set in KUKKO L-BOXX® eShop 83U ​ Induction heating device The patented portable induction heater operates in the high-frequency range and thus is very efficient. Integral timer and temperature control. The temperature control ensures even warming of the workpiece. Advantage: Portable high-performance induction heater, very light-weight and handy (3.5 kg). No yoke necessary, simply lay the workpiece on the heater. Application: Quick and selective heating of roller bearings, gear wheels, sleeves etc. For gentle and safe installation of shafts, pins etc. 88 3960 Supplied with: Heater, temperature probe, thermal protection gloves, and carrying case. 88 88 3960 86H Induction heating device IH 025 VOLCANO eShop Voltage V 230 Power kW 1.5 Induction coil Workpiece internal ⌀ from mm 20 outside the body, shortens the warm-up times Workpiece external ⌀ up to mm 160 and reduces the power consumption. maximum component weight kg 10 Temperature control range °C 20 – 180 Top yoke The compact simatherm® induction heating device for rolling bearings and other ring-shaped metal parts for bore diameters from 20 to 310 mm. Roller bearings and other ring-shaped metal parts can be brought up to the 110 °C specified by the manufacturer under automatic control of time and temperature. Particularly Magnetic compact design – only 17 kg in weight including 3 yokes. Remote control possible via Bluetooth® mobile temperature probe devices (only with free app “World of Maintenance”) Supplied with: Heating device, 3 yokes, temperature probe and thermal protection gloves. Size 45 ​ 88 3962 88 3962 86H Induction heating device IH 045 eShop Voltage V 230 Power kW 2.1 Workpiece internal ⌀ from mm 20 Clear Workpiece external ⌀ up to mm 310 user interface Extendable maximum component weight kg 45 workpiece Temperature control range °C 20 – 180 with LED lamp indicator support Length mm 320 Width mm 268 Bluetooth Height mm 293 connection indicator 936
