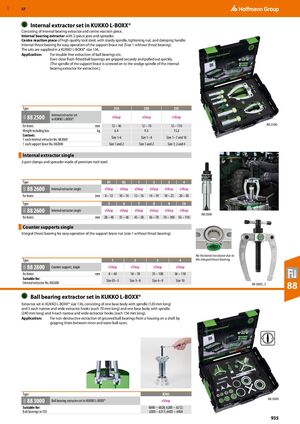

GBP 57 ​ Internal extractor set in KUKKO L-BOXX® Consisting of internal bearing extractor and centre reaction piece. Internal bearing extractor with 2-piece jaws and spreader. Centre reaction piece of high-quality tool steel, with sturdy spindle, tightening nut, and clamping handle. Internal thrust bearing for easy operation of the support brace nut (Size 1 without thrust bearing). The sets are supplied in a KUKKO L-BOXX® size 136. Application: For trouble-free extraction of ball bearings etc. Even close flush-fitted ball bearings are gripped securely and pulled out quickly. (The spindle of the support brace is screwed on to the wedge spindle of the internal bearing extractor for extraction.) Type 25A 25B 25C Internal extractor set 88 2500 83U eShop eShop eShop in KUKKO L-BOXX® for bores mm 12 – 46 12 – 70 12 – 110 88 2500 Weight including box kg 6.4 9.3 15.2 Content: Size 1-6 Size 1−8 Size 1−7 and 10 1 each internal extractor No. 882600 1 each support brace No. 882800 Size 1 and 2 Size 1 and 2 Size 1; 2 and 4 Internal extractor single ​ 2-part clamps and spreader made of premium tool steel. Type 01 02 1 2 3 4 88 2600 83U Internal extractor single eShop eShop eShop eShop eShop eShop for bores mm 8 – 12 10 – 14 12 – 16 14 – 19 18 – 23 20 – 30 Type 5 6 7 8 9 10 88 2600 83U Internal extractor single eShop eShop eShop eShop eShop eShop 88 2600 for bores mm 28 – 40 35 – 46 45 – 58 56 – 70 70 – 100 56 – 110 Counter supports single ​ Integral thrust bearing for easy operation of the support brace nut (size 1 without thrust bearing). No frictional resistance due to Type 1 2 3 4 the integral thrust bearing. 88 2800 83U Counter support, single eShop eShop eShop eShop for bores mm 8 – 40 18 – 70 35 – 100 56 – 110 Suitable for: Size 01−5 Size 3−8 Size 6−9 Size 10 Internal extractor No. 882600 88 2800_3 88 ​ Ball bearing extractor set in KUKKO L-BOXX® Extractor set in KUKKO L-BOXX® size 136, consisting of one base body with spindle (120 mm long) and 3 each narrow and wide extractor hooks (each 70 mm long) and one base body with spindle (240 mm long) and 4 each narrow and wide extractor hooks (each 156 mm long). Application: For non-destructive extraction of grooved ball bearings from a housing on a shaft by gripping them between inner and outer ball races. Type K70C 88 3000 88 3000 83U Ball bearing extractor set in KUKKO L-BOXX® eShop ​ Suitable for: 6000 − 6020; 6200 − 6212; Ball bearings to ISO 6300 − 6311; 6403 − 6408 935
