Ручные и измерительные инструменты Hoffmann Group 2026 - страница 939

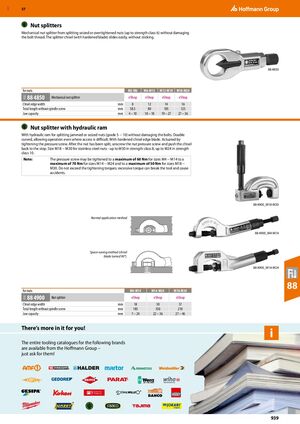

GBP 57 ​ Nut splitters Mechanical nut splitter from splitting seized or overtightened nuts (up to strength class 6) without damaging the bolt thread. The splitter chisel (with hardened blade) slides easily, without sticking. 88 4850 for nuts M2-M6 M6-M12 M12-M18 M18-M24 88 4850 83U Mechanical nut splitter eShop eShop eShop eShop Chisel edge width mm 8 12 14 16 Total length without spindle screw mm 58.5 80 105 125 Jaw capacity mm 4 – 10 10 – 18 19 – 27 27 – 36 ​ Nut splitter with hydraulic ram With hydraulic ram for splitting jammed or seized nuts (grade 5 − 10) without damaging the bolts. Double curved, allowing operation even where access is difficult. With hardened chisel edge blade. Actuated by tightening the pressure screw. After the nut has been split, unscrew the nut pressure screw and push the chisel back to the stop. Size M18 − M30 for stainless steel nuts - up to M30 in strength class 8, up to M24 in strength class 10. Note: The pressure screw may be tightened to a maximum of 60 Nm for sizes M4 − M14 to a maximum of 70 Nm for sizes M14 − M24 and to a maximum of 50 Nm for sizes M18 − M30. Do not exceed the tightening torques; excessive torque can break the tool and cause accidents. 88 4900_M18-M30 Normal application method 88 4900_M4-M14 Space-saving method (chisel blade turned 90°). 88 4900_M14-M24 for nuts M4-M14 M14-M24 M18-M30 88 88 4900 83U Nut splitter eShop eShop eShop Chisel edge width mm 18 30 37 Total length without spindle screw mm 185 350 210 Jaw capacity mm 7 – 24 22 – 36 27 – 46 There’s more in it for you! The entire tooling catalogues for the following brands are available from the Hoffmann Group – just ask for them! 939
