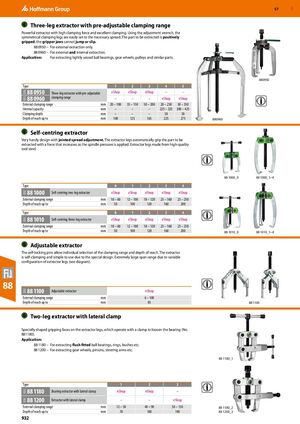

GBP 57 ​ Three-leg extractor with pre-adjustable clamping range Powerful extractor with high clamping force and excellent clamping. Using the adjustment wrench, the symmetrical clamping legs are easily set to the necessary spread. The part to be extracted is positively gripped, the gripper jaws cannot jump or slip. 88 0950 – For external extraction only. 88 0960 – For external and internal extraction. Application: For extracting tightly seized ball bearings, gear wheels, pulleys and similar parts. 880950 Type 1 2 3 4 5 88 0950 83U 83U Three-leg extractor with pre-adjustable eShop eShop eShop – – 88 0960 clamping range – – – eShop eShop External clamping range mm 20 – 100 35 – 150 50 – 200 20 – 250 30 – 350 Internal capacity mm – – – 225 – 325 300 – 425 Clamping depth mm – – – 50 50 Depth of reach up to mm 100 125 165 225 275 880960 ​ Self-centring extractor Very handy design with jointed spread adjustment. The extractor legs automatically grip the part to be extracted with a force that increases as the spindle pressure is applied. Extractor legs made from high-quality tool steel. 88 1000_0 88 1000_1–4 Type 0 1 2 3 4 88 1000 83U Self-centring two-leg extractor eShop eShop eShop eShop eShop External clamping range mm 10 – 60 12 – 100 18 – 120 23 – 160 23 – 250 Depth of reach up to mm 50 100 120 160 200 Type 0 1 2 3 4 88 1010 83U Self-centring three-leg extractor eShop eShop eShop eShop eShop External clamping range mm 10 – 60 12 – 100 18 – 120 23 – 160 23 – 250 Depth of reach up to mm 50 100 120 160 200 88 1010_0 88 1010_1–4 ​ Adjustable extractor The self-locking pins allow individual selection of the clamping range and depth of reach. The extractor is self-clamping and simple to use due to the special design. Extremely large span range due to variable configuration of extractor legs (see diagram). 88 88 1100 Adjustable extractor eShop 83U External clamping range mm 6 – 100 Depth of reach up to mm 85 88 1100 ​ Two-leg extractor with lateral clamp Specially shaped gripping faces on the extractor legs, which operate with a clamp to loosen the bearing (No. 881180). Application: 88 1180 – For extracting flush fitted ball bearings, rings, bushes etc. 88 1200 – For extracting gear wheels, pinions, steering arms etc. 88 1180_1 Type 1 2 3 88 1180 83U Bearing extractor with lateral clamp eShop eShop – 88 1200 83U Extractor with lateral clamp – – eShop External clamping range mm 12 – 50 40 – 90 50 – 150 88 1180_2 Depth of reach up to mm 70 100 140 88 1200_3 932
