Ручные и измерительные инструменты Hoffmann Group 2026 - страница 931

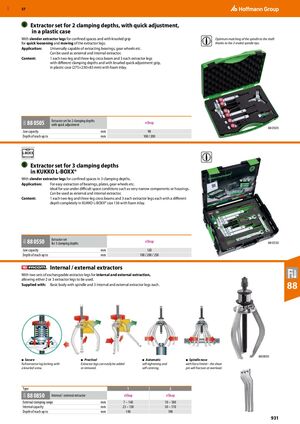

GBP 57 ​ Extractor set for 2 clamping depths, with quick adjustment, in a plastic case With slender extractor legs for confined spaces and with knurled grip Optimum matching of the spindle to the shaft for quick loosening and moving of the extractor legs. thanks to the 2-ended spindle tips. Application: Universally capable of extracting bearings, gear wheels etc. Can be used as external and internal extractor. Content: 1 each two-leg and three-leg cross beam and 3 each extractor legs with different clamping depths and with knurled quick adjustment grip, in plastic case (275×230×83 mm) with foam inlay. Extractor set for 2 clamping depths 88 0505 eShop 83U with quick adjustment 88 0505 Jaw capacity mm 90 Depth of reach up to mm 100 / 200 L-BOXX Extractor set for 3 clamping depths in KUKKO L-BOXX® With slender extractor legs for confined spaces in 3 clamping depths. Application: For easy extraction of bearings, plates, gear wheels etc. Ideal for use under difficult space conditions such as very narrow components or housings. Can be used as external and internal extractor. Content: 1 each two-leg and three-leg cross beams and 3 each extractor legs each with a different depth completely in KUKKO L-BOXX® size 136 with foam inlay. Extractor set 88 0550 eShop 83U for 3 clamping depths 88 0550 Jaw capacity mm 120 Depth of reach up to mm 100 / 200 / 250 ​ Internal / external extractors With two sets of exchangeable extractor legs for internal and external extraction, allowing either 2 or 3 extractor legs to be used. Supplied with: Basic body with spindle and 3 internal and external extractor legs each. 88 88 0850 ■ Secure ■ Practical ■ Automatic ■ Spindle nose Full extractor leg locking with Extractor legs can easily be added self-tightening and with force limiter - the shear a knurled screw. or removed. self-centring. pin will fracture at overload. Type 1 2 88 0850 83H Internal / external extractor eShop eShop External clamping range mm 7 – 140 10 – 180 Internal capacity mm 23 – 130 50 – 170 Depth of reach up to mm 140 190 931
