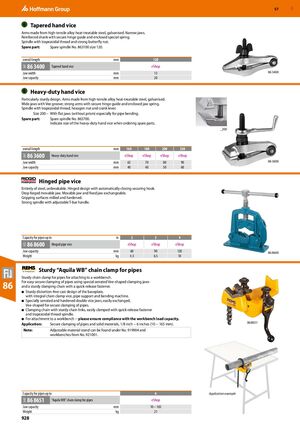

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 928

GBP 57 ​ Tapered hand vice Arms made from high-tensile alloy heat-treatable steel, galvanised. Narrow jaws. Reinforced shank with secure hinge guide and enclosed special spring. Spindle with trapezoidal thread and strong butterfly nut. Spare part: Spare spindle No. 863100 size 120. overall length mm 120 86 3400 Tapered hand vice eShop 86F Jaw width mm 13 86 3400 Jaw capacity mm 20 ​ Heavy-duty hand vice Particularly sturdy design. Arms made from high-tensile alloy heat-treatable steel, galvanised. Wide jaws with Vee groove; strong arms with secure hinge guide and enclosed jaw spring. Spindle with trapezoidal thread, hexagon nut and crank lever. Size 200 – With flat jaws (without prism) especially for pipe bending. Spare part: Spare spindle No. 863700. Indicate size of the heavy-duty hand vice when ordering spare parts. _200 overall length mm 160 180 200 250 86 3600 Heavy-duty hand vice eShop eShop eShop eShop 86F Jaw width mm 65 70 80 90 86 3600 Jaw capacity mm 40 40 50 60 ​ Hinged pipe vice Entirely of steel, unbreakable. Hinged design with automatically closing securing hook. Drop forged movable jaw. Movable jaw and fixed jaw exchangeable. Gripping surfaces milled and hardened. Strong spindle with adjustable T-bar handle. Capacity for pipes up to in 2 3 4 86 8600 Hinged pipe vice eShop eShop eShop 83S Jaw capacity mm 60 90 120 86 8600 Weight kg 4.3 6.5 10 ​ Sturdy “Aquila WB” chain clamp for pipes Sturdy chain clamp for pipes for attaching to a workbench. For easy secure clamping of pipes using special serrated Vee-shaped clamping jaws 86 and a sturdy clamping chain with a quick-release fastener. ■ Sturdy distortion-free cast design of the baseplate, with integral chain clamp vice, pipe support and bending machine. ■ Specially serrated and hardened double vice jaws, easily exchanged, Vee-shaped for secure clamping of pipes. ■ Clamping chain with sturdy chain links, easily clamped with quick-release fastener and trapezoidal thread spindle. ■ For attachment to a workbench − please ensure compliance with the workbench load capacity. Application: Secure clamping of pipes and solid materials, 1/8 inch − 6 inches (10 − 165 mm). 86 8651 Note: Adjustable material stand can be found under No. 919904 and workbenches from No. 921001. Capacity for pipes up to 6 Application example 86 8651 “Aquila WB” chain clamp for pipes eShop 84B Jaw capacity mm 10 – 165 Weight kg 21 928
