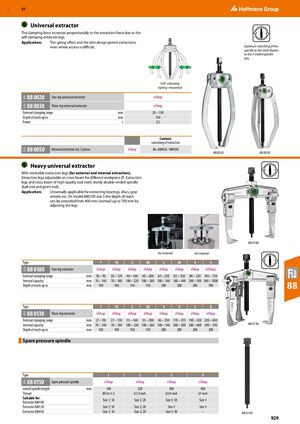

GBP 57 ​ Universal extractor The clamping force increases proportionally to the extraction force due to the self-clamping extractor legs. Application: The spring effect and the slim design permit extractions even where access is difficult. Optimum matching of the spindle to the shaft thanks to the 2-ended spindle tips. Self−clamping (spring−mounted) 88 0020 Two-leg universal extractor eShop 83U 88 0030 83U Three-leg universal extractor eShop External clamping range mm 20 – 150 Depth of reach up to mm 150 Power t 2.5 Content: ​ ​ consisting of extractors 88 0050 83U Universal extractor set, 2 pieces eShop No. 880020 / 880030 88 0020 88 0030 ​ Heavy universal extractor With reversible extraction legs (for external and internal extraction). Extraction legs adjustable on cross beam for different workpiece ⌀. Extraction legs and cross beam of high-quality tool steel; sturdy double-ended spindle (ball end and point end). Application: Universally applicable for extracting bearings, discs, gear wheels etc. On model 880100 size 5 the depth of reach can be extended from 400 mm (normal) up to 700 mm by adjusting the legs. 88 0100 for external for internal Type 1 10 2 20 3 30 4 5 88 0100 83U Two-leg extractor eShop eShop eShop eShop eShop eShop eShop (eShop) External clamping range mm 30 – 90 30 – 120 40 – 160 40 – 200 65 – 250 65 – 350 80 – 520 105 – 750 Internal capacity mm 70 – 140 70 – 180 100 – 220 100 – 260 180 – 340 180 – 440 200 – 590 340 – 1000 Depth of reach up to mm 100 100 150 150 200 200 200 700 88 Type 1 10 2 20 3 4 5 6 88 0130 83U Three-leg extractor eShop eShop eShop eShop eShop eShop eShop eShop External clamping range mm 27 – 90 27 – 130 35 – 160 35 – 200 46 – 250 170 – 375 190 – 520 220 – 650 Internal capacity mm 70 – 140 70 – 180 100 – 220 100 – 260 180 – 340 200 – 500 280 – 600 290 – 740 88 0130 Depth of reach up to mm 100 100 150 150 200 200 200 200 Spare pressure spindle ​ Type 1 2 3 4 88 0150 83U Spare pressure spindle eShop eShop eShop eShop overall spindle length mm 160 220 300 400 Thread M14×1.5 G1/2 inch G3/4 inch G1 inch Suitable for: Size 1; 10 Size 2; 20 Size 3; 30 Size 4 Extractor 880100 Extractor 880130 Size 1; 10 Size 2; 20 Size 3 Size 4 Extractor 880450 Size 1; 10 Size 2; 20 Size 3; 30 – 88 0150 929
