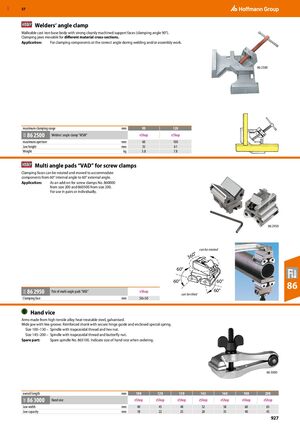

GBP 57 ​ Welders‘ angle clamp Malleable cast iron base body with strong cleanly machined support faces (clamping angle 90°). Clamping jaws movable for different material cross-sections. Application: For clamping components at the correct angle during welding and/or assembly work. 86 2500 maximum clamping range mm 90 120 86 2500 Welders‘ angle clamp “WSM” eShop eShop 83K maximum aperture mm 60 100 Jaw height mm 35 61 Weight kg 3.8 7.8 ​ Multi angle pads “VAD” for screw clamps Clamping faces can be rotated and moved to accommodate components from 60° internal angle to 60° external angle. Application: As an add-on for screw clamps No. 860000 from size 200 and 860500 from size 200. For use in pairs or individually. 86 2950 can be rotated ° 3 60 60° 60° 60° 86 2950 Pair of multi angle pads “VAD” eShop 60° 86 83K can be tilted Clamping face mm 50×50 ​ Hand vice Arms made from high-tensile alloy heat-treatable steel, galvanised. Wide jaw with Vee groove. Reinforced shank with secure hinge guide and enclosed special spring. Size 100–130 – Spindle with trapezoidal thread and hex nut. Size 145–200 – Spindle with trapezoidal thread and butterfly nut. Spare part: Spare spindle No. 863100. Indicate size of hand vice when ordering. 86 3000 overall length mm 100 120 130 145 160 180 200 86 3000 Hand vice eShop eShop eShop eShop eShop eShop eShop 86F Jaw width mm 40 45 48 52 58 60 65 Jaw capacity mm 18 22 25 28 35 40 45 927
