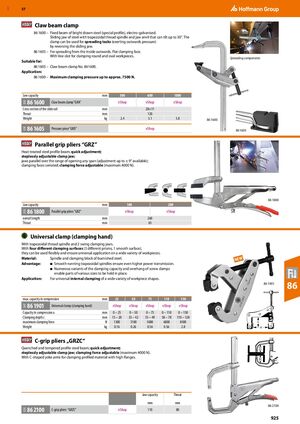

GBP 57 ​ Claw beam clamp 86 1600 – Fixed beam of bright drawn steel (special profile), electro-galvanised. Sliding jaw of steel with trapezoidal thread spindle and jaw anvil that can tilt up to 30°. The clamp can be used for spreading tasks (exerting outwards pressure) by reversing the sliding jaw. 86 1605 – For spreading from the inside outwards. Flat clamping face. With Vee-slot for clamping round and oval workpieces. Spreading components Suitable for: 86 1605 – Claw beam clamp No. 861600. Application: 86 1600 – Maximum clamping pressure up to approx. 7500 N. Jaw capacity mm 300 600 1000 86 1600 Claw beam clamp “GRA” eShop eShop eShop 83K Cross section of the slide rail mm 28×11 Throat mm 120 Weight kg 2.4 3.1 3.8 86 1600 86 1605 Pressure piece “GRD” eShop 83K 86 1605 ​ Parallel grip pliers “GRZ” Heat-treated steel profile beam; quick adjustment; steplessly adjustable clamp jaw; jaws parallel over the range of opening any span (adjustment up to ± 9° available); clamping faces serrated; clamping force adjustable (maximum 4000 N). 86 1800 Jaw capacity mm 100 200 86 1800 Parallel grip pliers “GRZ” eShop eShop 83K overall length mm 260 Throat mm 65 ​ Universal clamp (clamping hand) With trapezoidal thread spindle and 2 swing clamping jaws. With four different clamping surfaces (3 different prisms, 1 smooth surface), they can be used flexibly and ensure universal application on a wide variety of workpieces. Material: Spindle and clamping block of burnished steel. NEW Advantage: ■ Smooth-running trapezoidal spindles ensure even higher power transmission. ■ Numerous variants of the clamping capacity and overhang of screw clamps enable parts of various sizes to be held in place. Application: For universal internal clamping of a wide variety of workpiece shapes. ​ 86 1901 86 max. capacity in compression mm 25 50 75 110 150 86 1901 Universal clamp (clamping hand) eShop eShop eShop eShop eShop 86F Capacity in compression a mm 0 – 25 0 – 50 0 – 75 0 – 110 0 – 150 Clamping depth c mm 15 – 20 33 – 42 35 – 49 58 – 78 110 – 128 maximum clamping force N 1300 3100 5000 6800 8500 c Weight kg 0.16 0.26 0.56 0.56 2.8 a ​ C-grip pliers „GRZC“ Quenched and tempered profile steel beam; quick adjustment; 35 steplessly adjustable clamp jaw; clamping force adjustable (maximum 4000 N). With C-shaped yoke arms for clamping profiled material with high flanges. 35 Jaw capacity Throat ​ ​ mm mm 86 2100 86 2100 C-grip pliers “GRZC” eShop 110 80 83K 925
