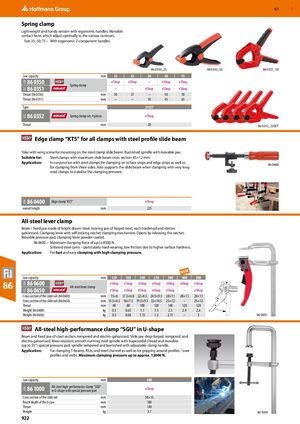

GBP 57 ​Spring clamp Lightweight and handy version with ergonomic handles. Movable contact faces which adjust optimally to the various contours. Size 35; 50; 75 – With ergonomic 2-component handles. 86 0350_25 86 0350_50 86 0351_50 Jaw capacity mm 25 35 38 50 75 86 0350 eShop eShop – eShop eShop 82C 83K Spring clamp 86 0351 – – eShop eShop eShop Throat (86 0350) mm 30 37 – 50 70 Throat (86 0351) mm – – 30 45 65 Type 25SET 86 0352 Spring clamp set, 4 pieces eShop 82C Throat mm 20 86 0352_25SET ​ Edge clamp “KT5” for all clamps with steel profile slide beam Yoke with wing screw for mounting on the steel clamp slide beam. Burnished spindle with movable jaw. Suitable for: Steel clamps with maximum slide beam cross section 45×12 mm. Application: In conjunction with steel clamps for clamping on to face strips and edge strips as well as 86 0400 for clamping from three sides. Also supports the slide beam when clamping with very long steel clamps to stabilise the clamping pressure. 86 0400 Edge clamp “KT5” eShop 83K overall length mm 225 ​All-steel lever clamp Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Clamping lever with self-locking ratchet clamping mechanism. Opens by releasing the ratchet. Movable pressure pad, clamping lever powder coated. 86 0600 – Maximum clamping force of up to 8500 N. Sintered steel cams – particularly hard-wearing, low friction due to higher surface hardness. Application: For fast and easy clamping with high clamping pressure. NEW Jaw capacity mm 120 160 200 250 300 400 500 86 86 0600 eShop eShop eShop eShop eShop eShop eShop 82C 83K All-steel lever clamp 86 0650 eShop eShop eShop eShop eShop – eShop Cross section of the slide rail (86 0600) mm 15×6 17.5×6.8 22×8.5 24.5×9.5 28×11 28×11 28×11 Cross section of the slide rail (86 0650) mm 13.5×6.5 16×7.5 19.5×9.5 22×10.5 25×12 – 25×12 Throat mm 60 80 100 120 140 120 120 Weight (86 0600) kg 0.5 0.65 1.1 1.5 2.3 2.4 2.6 Weight (86 0650) kg 0.5 0.68 1.15 1.5 2.31 – 3 86 0650 ​ All-steel high-performance clamp “SGU” in U-shape Beam and fixed jaw of steel section, tempered and electro-galvanised. Slide jaw drop-forged, tempered, and electro-galvanised. Wear-resistant smooth-running steel spindle with trapezoidal thread and movable (up to 35°) special pressure pad, spindle tempered and burnished with adjustable clamp handle. Application: For clamping T-beams, RSJs, and steel channel as well as for gripping around profiles / over profiles and webs. Maximum clamping pressure up to approx. 12000 N. Jaw capacity mm 300 All-steel high-performance clamp “SGU” 86 1000 eShop 83K in U-shape with special pressure pad Cross section of the slide rail mm 30×15 Reach depth of the U-jaw mm 100 Throat mm 140 Weight kg 3.7 86 1000 922
