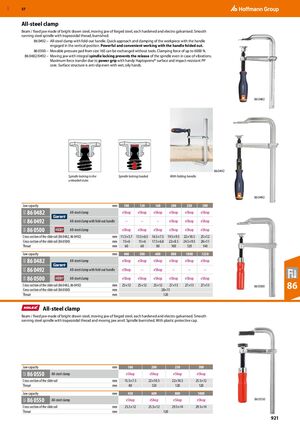

GBP 57 ​All-steel clamp Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Smooth running steel spindle with trapezoidal thread, burnished. 86 0492 – All-steel clamp with fold-out handle. Quick approach and clamping of the workpiece with the handle engaged in the vertical position. Powerful and convenient working with the handle folded out. 86 0500 – Movable pressure pad from size 160 can be exchanged without tools. Clamping force of up to 6000 N. 86 0482/0492 – Moving jaw with integral spindle locking prevents the release of the spindle even in case of vibrations. Maximum force transfer due to power grip with handy Haptoprene® surface and impact-resistant PP core. Surface structure is anti-slip even with wet, oily hands. 86 0482 86 0492 Spindle locking in the Spindle locking loaded. With folding handle. unloaded state. 86 0492 Jaw capacity mm 100 120 160 200 250 300 86 0482 All-steel clamp eShop eShop eShop eShop eShop eShop 81D 86 0492 All-steel clamp with fold-out handle – – – eShop eShop eShop 81D 86 0500 All-steel clamp eShop eShop eShop eShop eShop eShop 83K Cross section of the slide rail (86 0482, 86 0492) mm 11.5×5.7 13.5×6.5 16.5×7.5 19.5×9.5 22×10.5 25×12 Cross section of the slide rail (86 0500) mm 15×6 15×6 17.5×6.8 22×8.5 24.5×9.5 28×11 Throat mm 60 60 80 100 120 140 Jaw capacity mm 400 500 600 800 1000 1250 86 0482 All-steel clamp eShop eShop eShop eShop eShop eShop 81D 86 0492 All-steel clamp with fold-out handle eShop – eShop – – – 81D 86 0500 All-steel clamp eShop eShop eShop eShop eShop eShop 83K Cross section of the slide rail (86 0482, 86 0492) Cross section of the slide rail (86 0500) mm mm 25×12 25×12 25×12 28×11 27×13 27×13 27×13 86 0500 86 Throat mm 120 ​ All-steel clamp Beam / fixed jaw made of bright drawn steel, moving jaw of forged steel, each hardened and electro galvanised. Smooth running steel spindle with trapezoidal thread and moving jaw anvil. Spindle burnished. With plastic protective cap. Jaw capacity mm 160 200 250 300 86 0550 All-steel clamp eShop eShop eShop eShop 82C Cross section of the slide rail mm 15.5×7.5 22×10.5 22×10.5 25.5×12 Throat mm 80 120 120 120 Jaw capacity mm 450 600 800 1000 86 0550 All-steel clamp eShop eShop eShop eShop 86 0550 82C Cross section of the slide rail mm 25.5×12 25.5×12 29.5×14 29.5×14 Throat mm 120 921
