Ручные и измерительные инструменты Hoffmann Group 2026 - страница 920

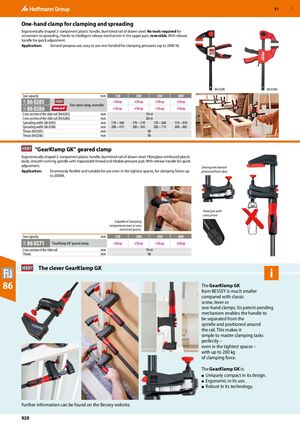

GBP 57 ​One-hand clamp for clamping and spreading Ergonomically shaped 2-component plastic handle, burnished rail of drawn steel. No tools required for conversion to spreading, thanks to intelligent release mechanism in the upper part, reversible. With release handle for quick adjustment. Application: General purpose use, easy to use one-handed for clamping pressures (up to 2000 N). 86 0285 86 0286 Jaw capacity mm 150 300 450 600 86 0285 eShop eShop eShop eShop 82C 83K One-hand clamp, reversible 86 0286 eShop eShop eShop eShop Cross section of the slide rail (86 0285) mm 19×6 Cross section of the slide rail (86 0286) mm 20×6 Spreading width (86 0285) mm 170 – 360 170 – 510 170 – 660 170 – 810 Spreading width (86 0286) mm 200 – 415 200 – 565 200 – 715 200 – 865 Throat (86 0285) mm 80 Throat (86 0286) mm 90 ​ “GearKlamp GK” geared clamp Ergonomically shaped 2-component plastic handle, burnished rail of drawn steel. Fibreglass-reinforced plastic body, smooth-running spindle with trapezoidal thread and tiltable pressure pad. With release handle for quick adjustment. Driving mechanism Application: Enormously flexible and suitable for use even in the tightest spaces, for clamping forces up protected from dust to 2000N. Fixed jaw with cross prism Capable of clamping components even in very restricted spaces. Jaw capacity mm 150 300 450 600 86 0271 “GearKlamp GK” geared clamp eShop eShop eShop eShop 83K Cross section of the slide rail mm 19×6 Throat mm 60 The clever GearKlamp GK 86 The GearKlamp GK from BESSEY is much smaller compared with classic screw, lever or one-hand clamps. Its patent-pending mechanism enables the handle to be separated from the spindle and positioned around the rail. This makes it simple to master clamping tasks perfectly – even in the tightest spaces – with up to 200 kg of clamping force. The GearKlamp GK is: ■ Uniquely compact in its design. ■ Ergonomic in its use. ■ Robust in its technology. Further information can be found on the Bessey website. 920
