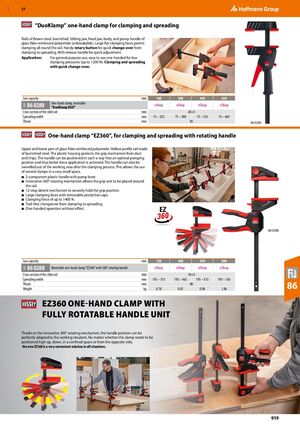

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 919

GBP 57 ​ “DuoKlamp” one-hand clamp for clamping and spreading Rails of drawn steel, burnished. Sliding jaw, fixed jaw, body, and pump handle of glass fibre reinforced polyamide (unbreakable). Large flat clamping faces permit clamping all round the rail. Handy rotary button for quick change-over from clamping to spreading. With release handle for quick adjustment. Application: For general purpose use, easy to use one-handed for low clamping pressures (up to 1200 N). Clamping and spreading with quick change-over. Jaw capacity mm 160 300 450 650 One-hand clamp, reversible 86 0280 eShop eShop eShop eShop 83K “DuoKlamp DUO” Cross section of the slide rail mm 20×5 Spreading width mm 75 – 235 75 – 380 75 – 535 75 – 685 ​ Throat mm 85 86 0280 ​ One-hand clamp “EZ360”, for clamping and spreading with rotating handle Upper and lower part of glass-fibre reinforced polyamide. Hollow profile rail made of burnished steel. The plastic housing protects the grip mechanism from dust and chips. The handle can be positioned in such a way that an optimal pumping position and thus better force application is achieved. The handle can also be swivelled out of the working area after the clamping process. This allows the use of several clamps in a very small space. ■ 2-component plastic handle with pump lever. ■ Innovative 360° rotating mechanism allows the grip unit to be placed around the rail. ■ 12-step detent mechanism to securely hold the grip position. ■ Large clamping faces with removable protective caps. ■ Clamping force of up to 1400 N. ■ Tool-free changeover from clamping to spreading. ■ One-handed operation without effort. ​ 86 0288 Jaw capacity mm 150 300 450 600 86 0288 Reversible one-hand clamp “EZ360” with 360° rotating handle eShop eShop eShop eShop 83K Cross section of the slide rail mm 18×5 Spreading width mm 195 – 315 195 – 465 195 – 615 195 – 765 Throat Weight mm kg 0.78 0.87 80 0.96 1.06 86 EZ360 ONE-HAND CLAMP WITH FULLY ROTATABLE HANDLE UNIT Thanks to the innovative 360° rotating mechanism, the handle position can be perfectly adapted to the working situation. No matter whether the clamp needs to be positioned high up, down, in a confined space or from the opposite side, the new EZ360 is a very convenient solution in all situations. 919
