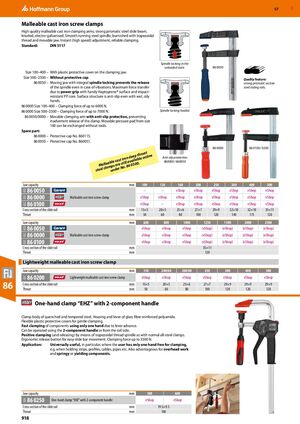

GBP 57 ​Malleable cast iron screw clamps High quality malleable cast iron clamping arms; strong prismatic steel slide beam, knurled, electro-galvanised. Smooth running steel spindle, burnished with trapezoidal thread and movable jaw. Instant (high speed) adjustment, reliable clamping. Standard: DIN 5117 Spindle locking in the unloaded state. 86 0050 Size 100–400 – With plastic protective cover on the clamping jaw. Size 500–2500 – Without protective cap. Quality feature: 86 0050 – Moving jaw with integral spindle locking prevents the release strong prismatic section of the spindle even in case of vibrations. Maximum force transfer steel sliding rails. due to power grip with handy Haptoprene® surface and impact- resistant PP core. Surface structure is anti-slip even with wet, oily hands. 86 0000 Size 100–400 – Clamping force of up to 6000 N. 86 0000 Size 500–2500 – Clamping force of up to 7000 N. Spindle locking loaded. 86 0050/0000 – Movable clamping arm with anti-slip protection, preventing inadvertent release of the clamp. Movable pressure pad from size 160 can be exchanged without tools. Spare part: 86 0000 – Protective cap No. 860115. 86 0050 – Protective cap No. 860051. 86 0000 86 0100 / 0200 at p thro e t i r o n dee able onlin Anti-slip protection e ca s a va i l 860000 / 860050 abl till . Malle mps are s o. 86 0300 e e l c la d e r N st un Jaw capacity mm 100 120 160 200 250 300 400 500 86 0050 – – eShop eShop eShop eShop eShop eShop 82C 83J 81D 86 0000 Malleable cast iron screw clamp eShop eShop eShop eShop eShop eShop eShop eShop 86 0100 eShop – eShop eShop eShop eShop eShop eShop Cross section of the slide rail mm 15×5 20×5 25×6 27×7 29×9 32×10 32×10 35×11 Throat mm 50 60 80 100 120 140 175 120 Jaw capacity mm 600 800 1000 1250 1500 2000 2500 86 0050 eShop eShop eShop (eShop) (eShop) (eShop) (eShop) 82C 83J 81D 86 0000 Malleable cast iron screw clamp eShop eShop eShop (eShop) (eShop) (eShop) (eShop) 86 0100 eShop eShop eShop (eShop) (eShop) (eShop) (eShop) Cross section of the slide rail mm 35×11 Throat mm 120 Lightweight malleable cast iron screw clamp Jaw capacity mm 150 200/60 200/80 250 300 400 500 86 0200 Lightweight malleable cast iron screw clamp eShop eShop eShop eShop eShop eShop eShop 82C 86 Cross section of the slide rail Throat mm mm 15×5 50 20×5 60 25×6 80 27×7 100 29×9 120 29×9 120 29×9 120 ​ One-hand clamp “EHZ” with 2-component handle Clamp body of quenched and tempered steel. Housing and lever of glass fibre reinforced polyamide. Flexible plastic protective covers for gentle clamping. Fast clamping of components using only one hand due to lever advance. Can be operated using the 2-component handle or from the rail side. Positive clamping (and releasing) by means of trapezoidal thread spindle as with normal all-steel clamps. Ergonomic release button for easy slide bar movement. Clamping force up to 3500 N. Application: Universally useful, in particular, where the user has only one hand free for clamping, e.g. when holding strips, profiles, cables, pipes etc. Also advantageous for overhead work and springy or yielding components. Jaw capacity mm 300 600 86 0250 One-hand clamp “EHZ” with 2-component handle eShop eShop 83K Cross section of the slide rail mm 19.5×9.5 Throat mm 100 918
