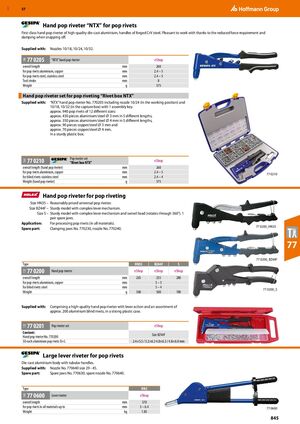

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 845

GBP 57 ​ Hand pop riveter “NTX” for pop rivets First-class hand pop riveter of high-quality die-cast aluminium, handles of forged CrV steel. Pleasant to work with thanks to the reduced force requirement and damping when snapping off. Supplied with: Nozzles 10/18, 10/24, 10/32. 77 0205 “NTX” hand pop riveter eShop 74B overall length mm 260 for pop rivets aluminium, copper mm 2.4 – 5 for pop rivets steel, stainless steel mm 2.4 – 5 Tool stroke mm 8 Weight g 575 Hand pop riveter set for pop riveting “Rivet box NTX” Supplied with: “NTX” hand pop riveter No. 770205 including nozzle 10/24 (in the working position) and 10/18, 10/32 (in the capture box) with 1 assembly key. approx. 940 pop rivets of 12 different sizes: approx. 430 pieces aluminium/steel ⌀ 3 mm in 5 different lengths, approx. 350 pieces aluminium/steel ⌀ 4 mm in 5 different lengths, approx. 90 pieces copper/steel ⌀ 3 mm and approx. 70 pieces copper/steel ⌀ 4 mm. In a sturdy plastic box. Pop riveter set 77 0210 eShop 74A “Rivet box NTX” overall length (hand pop riveter) mm 260 for pop rivets aluminium, copper mm 2.4 – 5 77 0210 for blind rivets stainless steel mm 2.4 – 4 Weight (hand pop riveter) g 575 ​ Hand pop riveter for pop riveting Size HN35 – Reasonably priced universal pop riveter. Size BZ44F – Sturdy model with complex lever mechanism. Size S – Sturdy model with complex lever mechanism and swivel head (rotates through 360°). 1 pair spare jaws. Application: For processing pop rivets (in all materials). ​77 0200_HN35 Spare part: Clamping jaws No. 770230, nozzle No. 770240. 77 ​77 0200_BZ44F Type HN35 BZ44F S 77 0200 Hand pop riveter eShop eShop eShop 72E overall length mm 265 255 280 for pop rivets aluminium, copper mm 3–5 for blind rivets steel mm 3–4 ​77 0200_S Weight g 500 500 700 Supplied with: Comprising a high-quality hand pop riveter with lever action and an assortment of approx. 200 aluminium blind rivets, in a strong plastic case. 77 0201 Pop riveter set eShop 72E Content: Size BZ44F Hand pop riveter No. 770200 50 each aluminium pop rivets D×L 2.4×5.5 / 3.2×6.3 4.0×6.3 / 4.8×6.0 mm ​ Large lever riveter for pop rivets Die-cast aluminium body with tubular handles. Supplied with: Nozzle No. 770640 size 29 - 45. Spare part: Spare jaws No. 770630, spare nozzle No. 770640. Type HN2 77 0600 Lever riveter eShop 74B overall length mm 570 for pop rivets in all materials up to mm 3 – 6.4 77 0600 Weight kg 1.85 845
