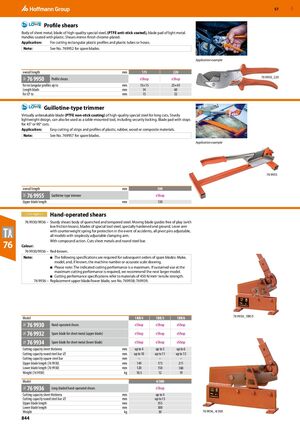

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 844

GBP 57 ​ Profile shears Body of sheet metal, blade of high-quality special steel, (PTFE anti-stick coated), blade pad of light metal. Handles coated with plastic. Shears mirror-finish chrome-plated. Application: For cutting rectangular plastic profiles and plastic tubes or hoses. Note: See No. 769952 for spare blades. Application example overall length mm 175 220 76 9950_220 76 9950 Profile shears eShop eShop 76F for rectangular profiles up to mm 15×15 25×45 Length blade mm 34 60 for ⌀ to mm 15 32 ​ Guillotine-type trimmer Virtually unbreakable blade (PTFE non-stick coating) of high-quality special steel for long cuts. Sturdy lightweight design, can also be used as a table-mounted tool, including security locking. Blade pad with stops for 45° or 90° cuts. Application: Easy cutting of strips and profiles of plastic, rubber, wood or composite materials. Note: See No. 769957 for spare blades. Application example 76 9955 overall length mm 580 76 9955 Guillotine-type trimmer eShop 76F Upper blade length mm 130 ​ Hand-operated shears 76 9930/9936 – Sturdy shears body of quenched and tempered steel. Moving blade guides free of play (with low friction losses), blades of special tool steel, specially hardened and ground. Lever arm with counterweight spring for protection in the event of accidents, all pivot pins adjustable, all models with steplessly adjustable clamping arm. With compound action. Cuts sheet metals and round steel bar. 76 Colour: 76 9930/9936 – Red-brown. Note: ■ The following specifications are required for subsequent orders of spare blades: Make, model, and, if known, the machine number or accurate scale drawing. ■ Please note: The indicated cutting performance is a maximum. If sustained use at the maximum cutting performance is required, we recommend the next larger model. ■ Cutting performance specifications refer to materials of 450 N/mm2 tensile strength. 76 9936 – Replacement upper blade/lower blade, see No. 769938; 769939. 76 9930_1BR/5 Model 1BR/4 1BR/5 1BR/6 76 9930 Hand-operated shears eShop eShop eShop 76L 76 9932 Spare blade for sheet metal (upper blade) eShop eShop eShop 76L 76 9934 Spare blade for sheet metal (lower blade) eShop eShop eShop 76L Cutting capacity sheet thickness mm up to 4 up to 5 up to 6 Cutting capacity round steel bar ⌀ mm up to 10 up to 11 up to 13 Cutting capacity square steel bar mm – – – Upper blade length (76 9930) mm 149 173 211 Lower blade length (76 9930) mm 120 150 180 Weight (76 9930) kg 10.5 12 19 Model 4/300 76 9936 Long-bladed hand-operated shears eShop 76L Cutting capacity sheet thickness mm up to 4 Cutting capacity round steel bar ⌀ mm up to 13 Upper blade length mm 355 Lower blade length mm 300 Weight kg 30 76 9936_4/300 844
