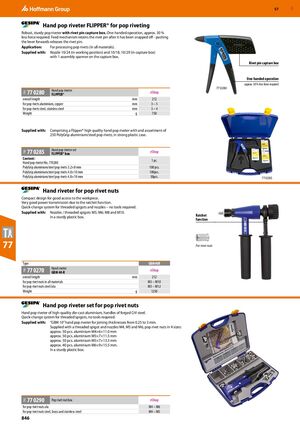

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 846

GBP 57 ​ Hand pop riveter FLIPPER® for pop riveting Robust, sturdy pop riveter with rivet pin capture box. One-handed operation, approx. 30 % less force required. Feed mechanism retains the rivet pin after it has been snapped off - pushing the lever forwards releases the rivet pin. Application: For processing pop rivets (in all materials). Supplied with: Nozzle 10/24 (in working position) and 10/18, 10/29 (in capture box) with 1 assembly spanner on the capture box. Rivet pin capture box One-handed operation approx. 30 % less force required 77 0280 Hand pop riveter 77 0280 eShop 74A FLIPPER® overall length mm 212 for pop rivets aluminium, copper mm 3–5 for pop rivets steel, stainless steel mm 3–4 Weight g 750 Supplied with: Comprising a Flipper® high quality hand pop riveter with and assortment of 250 PolyGrip aluminium/steel pop rivets, in strong plastic case. Hand pop riveter set 77 0285 eShop 74A FLIPPER® box Content: 1 pc. Hand pop riveter No. 770280 PolyGrip aluminium/steel pop rivets 3.2×8 mm 100 pcs. PolyGrip aluminium/steel pop rivets 4.0×10 mm 100pcs. PolyGrip aluminium/steel pop rivets 4.8×10 mm 50pcs. 77 0285 ​ Hand riveter for pop rivet nuts Compact design for good access to the workpiece. Very good power transmission due to the ratchet function. Quick-change system for threaded spigots and nozzles – no tools required. Supplied with: Nozzles / threaded spigots M5; M6; M8 and M10. In a sturdy plastic box. Ratchet function 77 For rivet nuts Type GBM40R Hand riveter 77 0270 eShop 74A GBM 40-R overall length mm 212 for pop rivet nuts in all materials M3 – M10 for pop rivet nuts steel/alu M3 – M12 Weight g 1250 ​ Hand pop riveter set for pop rivet nuts Hand pop riveter of high-quality die-cast aluminium, handles of forged CrV steel. Quick-change system for threaded spigots, no tools required. Supplied with: “GBM 10” hand pop riveter for joining thicknesses from 0.25 to 3 mm. Supplied with a threaded spigot and nozzles M4, M5 and M6, pop rivet nuts in 4 sizes: approx. 50 pcs. aluminium M4×6×11.0 mm approx. 50 pcs. aluminium M5×7×11.5 mm approx. 50 pcs. aluminium M5×7×13.5 mm approx. 40 pcs. aluminium M6×9×15.5 mm. In a sturdy plastic box. 77 0290 Pop rivet nut box eShop 74A for pop rivet nuts alu M4 – M6 for pop rivet nuts steel, brass and stainless steel M4 – M5 846
