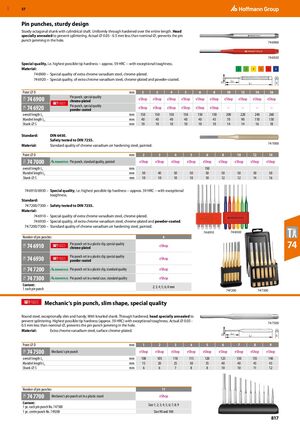

GBP 57 ​Pin punches, sturdy design Sturdy octagonal shank with cylindrical shaft. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Actual ⌀ 0.05 - 0.5 mm less than nominal ⌀, prevents the pin punch jamming in the hole. 74 6900 74 6920 Special quality, i.e. highest possible tip hardness − approx. 59 HRC − with exceptional toughness. Material: 74 6900 – Special quality of extra chrome vanadium steel, chrome-plated. 74 6920 – Special quality, of extra chrome vanadium steel, chrome-plated and powder-coated. L2 D L1 S Point ⌀ D mm 2 3 4 5 6 8 10 12 14 16 Pin punch, special quality 74 6900 eShop eShop eShop eShop eShop eShop eShop eShop eShop eShop 73B chrome-plated Pin punch, special quality 74 6920 eShop eShop eShop eShop eShop eShop – – – – 73B powder-coated overall length L1 mm 150 150 150 150 150 150 200 220 240 260 Mandrel length L2 mm 40 40 40 40 40 45 70 90 110 130 Shank ⌀ S mm 10 10 10 10 10 10 14 14 16 18 Standard: DIN 6450. Safety tested to DIN 7255. 74 7000 Material: Standard quality of chrome vanadium air hardening steel, painted. Point ⌀ D mm 2 3 4 5 6 8 10 12 14 74 7000 73U Pin punch, standard quality, painted eShop eShop eShop eShop eShop eShop eShop eShop eShop overall length L1 mm 150 Mandrel length L2 mm 30 40 50 50 50 50 50 50 50 Shank ⌀ S mm 10 10 10 10 10 12 12 14 16 74 6910/6930 – Special quality, i.e. highest possible tip hardness − approx. 59 HRC − with exceptional toughness. Standard: 74 7200/7300 – Safety tested to DIN 7255. Material: 74 6910 – Special quality of extra chrome vanadium steel, chrome-plated. 74 6930 – Special quality, of extra chrome vanadium steel, chrome-plated and powder-coated. 74 7200/7300 – Standard quality of chrome vanadium air hardening steel, painted. 74 6910 74 6930 Number of pin punches 6 74 6910 Pin punch set in a plastic clip, special quality eShop 74 73B chrome-plated Pin punch set in a plastic clip, special quality 74 6930 eShop 73B powder-coated 74 7200 73U Pin punch set in a plastic clip, standard quality eShop 74 7300 73U Pin punch set in a metal case, standard quality eShop Content: 2; 3; 4; 5; 6; 8 mm 1 each pin punch 747200 74 7300 ​ Mechanic‘s pin punch, slim shape, special quality Round steel, exceptionally slim and handy. With knurled shank. Through hardened, head specially annealed to prevent splintering. Highest possible tip hardness (approx. 59 HRC) with exceptional toughness. Actual ⌀ 0.05 - 74 7500 0.5 mm less than nominal ⌀, prevents the pin punch jamming in the hole. Material: Extra chrome vanadium steel, surface chrome-plated. L2 D L1 S Point ⌀ D mm 1 2 3 4 5 6 7 8 9 74 7500 Mechanic‘s pin punch eShop eShop eShop eShop eShop eShop eShop eShop eShop 73B overall length L1 mm 100 105 110 115 120 125 130 135 140 Mandrel length L2 mm 15 20 25 30 35 40 40 45 45 Shank ⌀ S mm 6 6 7 8 8 10 10 11 12 Number of pin punches 11 74 7700 Mechanic’s pin punch set in a plastic stand eShop 73B Content: Size 1; 2; 3; 4; 5; 6; 7; 8; 9 1 pc. each pin punch No. 747500 1 pc. centre punch No. 749200 Size 90 and 100 817
