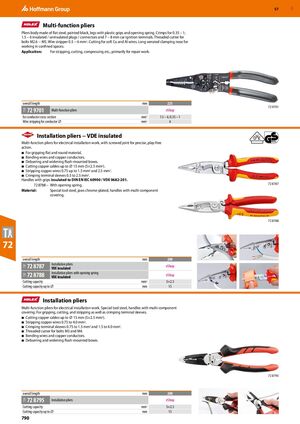

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 790

GBP 57 ​ Multi-function pliers Pliers body made of flat steel, painted black, legs with plastic grips and opening spring. Crimps for 0.35 – 1; 1.5 – 6 insulated / uninsulated plugs / connectors and 7 – 8 mm car ignition terminals. Threaded cutter for bolts M2.6 − M5. Wire stripper 0.5 − 6 mm2. Cutting for soft Cu and Al wires. Long serrated clamping nose for working in confined spaces. Application: For stripping, cutting, compressing etc., primarily for repair work. overall length mm 225 ​ 72 9701 72 9701 Multi-function pliers eShop 72B for conductor cross-section mm2 1.5 – 6; 0.35 – 1 Wire stripping for conductor ⌀ mm2 6 ​ Installation pliers − VDE insulated Multi-function pliers for electrical installation work, with screwed joint for precise, play-free action. ■ For gripping flat and round material. ■ Bending wires and copper conductors. ■ Deburring and widening flush-mounted boxes. ■ Cutting copper cables up to ⌀ 15 mm (5×2.5 mm2). ■ Stripping copper wires 0.75 up to 1.5 mm2 and 2.5 mm2. ■ Crimping terminal sleeves 0.5 to 2.5 mm2. Handles with grips insulated to DIN EN IEC 60900 / VDE 0682-201. 72 8788 – With opening spring. 72 8787 Material: Special tool steel, jaws chrome-plated, handles with multi-component covering. 72 8788 72 overall length mm 200 Installation pliers 72 8787 eShop 73F VDE insulated Installation pliers with opening spring 72 8788 eShop 73F VDE insulated Cutting capacity mm2 5×2.5 Cutting capacity up to ⌀ mm 15 ​ Installation pliers Multi-function pliers for electrical installation work. Special tool steel, handles with multi-component covering. For gripping, cutting, and stripping as well as crimping terminal sleeves. ■ Cutting copper cables up to ⌀ 15 mm (5×2.5 mm2). ■ Stripping copper wires 0.75 to 4.0 mm2. ■ Crimping terminal sleeves 0.75 to 1.5 mm2 and 1.5 to 4.0 mm2. ■ Threaded cutter for bolts M3 and M4. ■ Bending wires and copper conductors. ■ Deburring and widening flush-mounted boxes. 72 8795 overall length mm 200 72 8795 Installation pliers eShop 72B Cutting capacity mm2 5×2.5 Cutting capacity up to ⌀ mm 15 790
