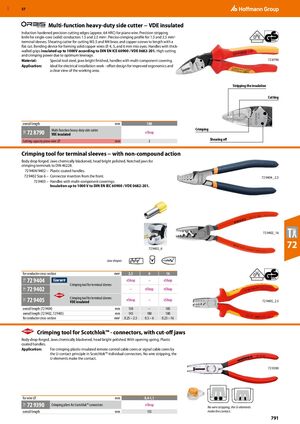

GBP 57 ​ Multi-function heavy-duty side cutter − VDE insulated Induction hardened precision cutting edges (approx. 64 HRC) for piano wire. Precision stripping knife for single-core (solid) conductors 1.5 and 2.5 mm2. Precise crimping profile for 1.5 and 2.5 mm2 terminal sleeves. Shearing cutter for cutting M3.5 and M4 brass and copper screws to length with a flat cut. Bending device for forming solid copper wires ⌀ 4, 5, and 6 mm into eyes. Handles with thick- walled grips insulated up to 1000V according to DIN EN ICE 60900 / VDE 0682-201. High cutting and crimping power due to optimum leverage. Material: Special tool steel, jaws bright finished, handles with multi-component covering. 72 8790 Application: Ideal for electrical installation work - offset design for improved ergonomics and a clear view of the working area. Stripping the insulation Cutting overall length mm 180 Multi-function heavy-duty side cutter Crimping 72 8790 eShop 76B VDE insulated Cutting capacity piano wire ⌀ mm 2 Shearing off ​Crimping tool for terminal sleeves − with non-compound action Body drop forged. Jaws chemically blackened, head bright polished. Notched jaws for crimping terminals to DIN 46228. 72 9404/9402 – Plastic coated handles. 72 9402 Size 6 – Connector insertion from the front. 72 9404 _2,5 72 9405 – Handles with multi-component coverings. Insulation up to 1000 V to DIN EN IEC 60900 / VDE 0682-201. 72 9402_16 72 9402_6 72 1 6 16 2,5 ,25 Jaw shapes 4 1,5 ,75 10 for conductor cross-section mm2 2,5 6 16 72 9404 eShop – eShop 71B Crimping tool for terminal sleeves 72 9402 – eShop eShop 73F Crimping tool for terminal sleeves 72 9405 eShop – eShop 73F VDE insulated 72 9405_2.5 overall length (72 9404) mm 150 – 185 overall length (72 9402, 72 9405) mm 145 180 180 for conductor cross-section mm2 0.25 – 2.5 0.5 – 6 0.25 – 16 ​ Crimping tool for Scotchlok™ - connectors, with cut-off jaws Body drop-forged. Jaws chemically blackened, head bright polished. With opening spring. Plastic coated handles. Application: For crimping plastic-insulated remote control cable cores or signal cable cores by the U-contact principle in Scotchlok™ individual connectors. No wire stripping, the U-elements make the contact. 72 9390 for wire ⌀ mm 0,4-1,1 72 9390 Crimping pliers for Scotchlok™ connectors eShop 73F No wire stripping, the U-elements overall length mm 155 make the contact. 791
