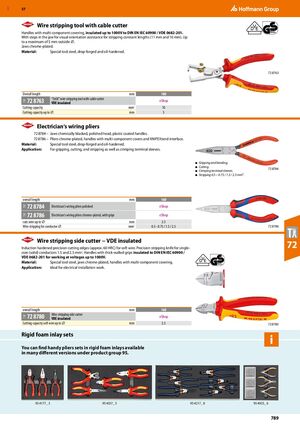

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 789

GBP 57 ​ Wire stripping tool with cable cutter Handles with multi-component covering, insulated up to 1000V to DIN EN IEC 60900 / VDE 0682-201. With steps in the jaw for visual orientation assistance for stripping constant lengths (11 mm and 16 mm). Up to a maximum of 5 mm outside ⌀. Jaws chrome-plated. Material: Special tool steel, drop-forged and oil-hardened. 72 8763 Overall length mm 180 “StriX” wire stripping tool with cable cutter 72 8763 eShop 73F VDE insulated Cutting capacity mm2 10 Cutting capacity up to ⌀ mm 5 ​ Electrician‘s wiring pliers 72 8784 – Jaws chemically blacked, polished head, plastic coated handles. 72 8786 – Pliers chrome-plated, handles with multi-component covers and KNIPEXtend interface. Material: Special tool steel, drop-forged and oil-hardened. Application: For gripping, cutting, and stripping as well as crimping terminal sleeves. ■ Gripping and bending. ■ Cutting. 72 8784 ■ Crimping terminal sleeves. ■ Stripping 0.5 – 0.75 / 1.5 / 2.5 mm². overall length mm 160 72 8784 Electrician’s wiring pliers polished eShop 73F 72 8786 Electrician’s wiring pliers chrome-plated, with grips eShop 73F cuts wire up to ⌀ mm 2.5 Wire stripping for conductor ⌀ mm2 0.5 - 0.75 / 1.5 / 2.5 ​ 72 8786 ​ Wire stripping side cutter − VDE insulated Induction hardened precision cutting edges (approx. 60 HRC) for soft wire. Precision stripping knife for single- 72 core (solid) conductors 1.5 and 2.5 mm2. Handles with thick-walled grips insulated to DIN EN IEC 60900 / VDE 0682-201 for working at voltages up to 1000V. Material: Special tool steel, jaws chrome-plated, handles with multi-component covering. Application: Ideal for electrical installation work. overall length mm 160 Wire stripping side cutter 72 8780 eShop 73F VDE insulated Cutting capacity soft wire up to ⌀ mm 2.5 72 8780 Rigid foam inlay sets You can find handy pliers sets in rigid foam inlays available in many different versions under product group 95. 95 4177_ 3 95 4537_ 5 95 4217_ 8 95 4925_ 6 789
