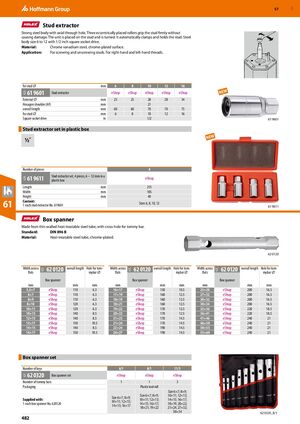

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 482

GBP 57 ​ Stud extractor Strong steel body with axial through hole. Three eccentrically placed rollers grip the stud firmly without causing damage. The unit is placed on the stud and is turned. It automatically clamps and holds the stud. Steel body size 6 to 12 with 1/2 inch square socket drive. Material: Chrome vanadium steel, chrome-plated surface. Application: For screwing and unscrewing studs. For right-hand and left-hand threads. for stud ⌀ mm 6 8 10 12 16 61 9601 NEW 62A Stud extractor eShop eShop eShop eShop eShop External ⌀ mm 25 25 28 28 34 Hexagon shoulder (AF) mm 21 overall length mm 60 60 70 70 75 for stud ⌀ mm 6 8 10 12 16 Square socket drive in 1/2 61 9601 Stud extractor set in plastic box ​ NEW Number of pieces 4 Stud extractor set, 4 pieces, 6 − 12 mm in a 61 9611 62A eShop plastic box Length mm 215 Width mm 105 Height mm 40 61 Content: 1 each stud extractor No. 619601 Sizes 6, 8, 10, 12 61 9611 ​ Box spanner Made from thin-walled heat-treatable steel tube, with cross-hole for tommy bar. Standard: DIN 896 B Material: Heat-treatable steel tube, chrome-plated. 62 0120 Width across 62 0120 overall length Hole for tom- Width across 62 0120 overall length Hole for tom- Width across 62 0120 overall length Hole for tom- 62C 62C 62C flats mybar ⌀ flats mybar ⌀ flats mybar ⌀ Box spanner Box spanner Box spanner mm mm mm mm mm mm mm mm mm 5,5×7 eShop 110 6.3 16×17 eShop 150 10.5 25×28 eShop 200 16.5 6×7 eShop 110 6.3 17×19 eShop 160 12.5 27×32 eShop 200 16.5 8×9 eShop 110 6.3 18×19 eShop 160 12.5 30×32 eShop 200 16.5 8×10 eShop 120 6.3 18×21 eShop 160 12.5 30×34 eShop 200 16.5 10×11 eShop 120 6.3 19×22 eShop 170 12.5 32×36 eShop 220 18.5 10×13 eShop 140 8.5 20×22 eShop 170 12.5 36×41 eShop 220 18.5 12×13 eShop 140 8.5 21×23 eShop 170 14.5 41×46 eShop 240 21 13×17 eShop 150 10.5 21×24 eShop 170 14.5 46×50 eShop 240 21 14×15 eShop 140 8.5 22×24 eShop 190 14.5 50×55 eShop 240 21 14×17 eShop 150 10.5 24×27 eShop 190 14.5 55×60 eShop 240 21 Box spanner set Number of keys 6/1 8/1 11/3 62 0320 Box spanner set eShop eShop eShop 62C Number of tommy bars 1 1 3 Packaging Plastic tool roll Size 6×7; 8×9; Size 6×7; 8×9; 10×11; 12×13; Size 6×7; 8×9; Supplied with: 10×11; 12×13; 14×15; 16×17; 10×11; 12×13; 1 each box spanner No. 620120 14×15; 16×17; 18×19; 20×22; 14×15; 16×17 18×21; 19×22 21×24; 27×32; 30×34 62 0320_8/1 482
