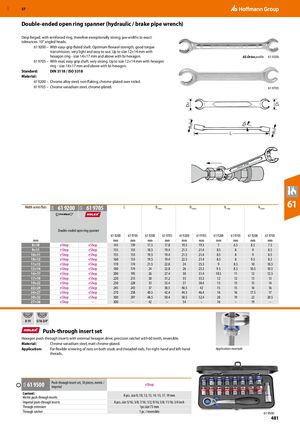

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 481

GBP 57 ​Double-ended open ring spanner (hydraulic / brake pipe wrench) Drop forged; with reinforced ring, therefore exceptionally strong; jaw widths to exact tolerances. 10° angled heads. 61 9200 – With easy-grip fluted shaft. Optimum flexural strength, good torque transmission, very light and easy to use. Up to size 12×14 mm with hexagon ring - size 14×17 mm and above with bi-hexagon. AS-Drive profile 61 9200 61 9705 – With oval, easy grip shaft, very strong. Up to size 12×14 mm with hexagon ring - size 14×17 mm and above with bi-hexagon. Standard: DIN 3118 / ISO 3318 Material: 61 9200 – Chrome alloy steel; non-flaking, chrome-plated over nickel. 61 9705 – Chrome vanadium steel, chrome-plated. 61 9705 D1 D1 h2D2 D2 ° 10 10 h1 L ° h2 h1 L Width across flats 61 9200 61 9705 L D1 max D2 max h1 max h2 max 61 62A 63A Double-ended open ring spanner 61 9200 61 9705 61 9200 61 9705 61 9200 61 9705 61 9200 61 9705 61 9200 61 9705 mm mm mm mm mm mm mm mm mm mm mm 8×10 eShop eShop 145 139 17.5 17.8 19.5 19.3 7 6.5 8.5 7.5 9×11 eShop eShop 155 153 18.5 19.4 21.5 21.4 8.5 8 9 8.5 10×11 eShop eShop 155 153 19.5 19.4 21.5 21.4 8.5 8 9 8.5 10×12 eShop eShop 160 153 19.5 19.4 22.5 21.4 8.5 8 9.5 8.5 11×13 eShop eShop 170 174 21.5 22.8 24 25.3 9 8.5 10 10.5 12×14 eShop eShop 180 174 24 22.8 26 25.3 9.5 8.5 10.5 10.5 14×17 eShop eShop 200 195 26 27.4 30 31.4 10.5 11 12 12.5 17×19 eShop eShop 220 213 30 31.2 33 33.3 12 12 13 13 19×22 eShop eShop 230 228 33 33.4 37 38.4 13 13 15 14 22×24 eShop eShop 245 243 37 38.5 40.5 42 15 15 16 16 24×27 eShop eShop 270 258 40.5 42.4 44.5 46.4 16 16 17.5 17 30×32 eShop eShop 300 297 48.5 50.4 50.5 52.4 20 19 22 20.5 27×36 eShop – 300 – 42 – 54 – 16 – 19 – 8-19 5/16-3/4“ Push-through insert set Hexagon push-through inserts with external hexagon drive, precision ratchet with 60 teeth, reversible. Material: Chrome vanadium steel, matt chrome-plated. Application: For flexible screwing of nuts on both studs and threaded rods. For right-hand and left-hand Application example threads. Push-through insert set, 18 pieces, metric / 61 9500 eShop 62A imperial Content: 8 pcs. size 8; 10; 12; 13; 14; 15; 17; 19 mm Metric push-through inserts Imperial push-through inserts 8 pcs. size 5/16; 3/8; 7/16; 1/2; 9/16; 5/8; 11/16; 3/4 inch Through extension 1pc.size 75 mm Through ratchet 1 pc. / reversible 61 9500 481
