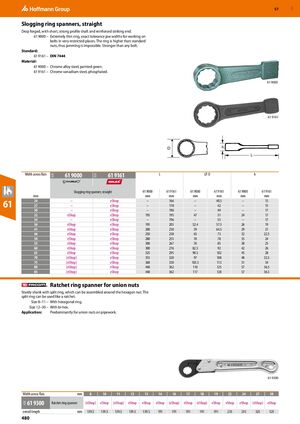

GBP 57 ​Slogging ring spanners, straight Drop forged, with short, strong profile shaft and reinforced striking end. 61 9000 – Extremely thin ring, exact tolerance jaw widths for working on bolts in very restricted places. The ring is higher than standard nuts, thus jamming is impossible. Stronger than any bolt. Standard: 61 9161 – DIN 7444 Material: 61 9000 – Chrome alloy steel, painted green. 61 9161 – Chrome vanadium steel, phosphated. 61 9000 61 9161 D h L Width across flats 61 9000 61 9161 L ⌀D h 62A 63A Slogging ring spanner, straight 61 9000 61 9161 61 9000 61 9161 61 9000 61 9161 mm mm mm mm mm mm mm 61 24 – eShop – 166 – 40.5 – 15 27 – eShop – 178 – 42 – 15 30 – eShop – 190 – 49 – 17 32 eShop eShop 195 195 47 51 24 17 34 – eShop – 196 – 53 – 17 36 eShop eShop 195 205 52.4 57.5 26 19 41 eShop eShop 200 230 59 64.5 29 21 46 eShop eShop 250 238 65 73 32 22.5 50 eShop eShop 280 255 70 78 35 24 55 eShop eShop 300 267 76 85 38 25 60 eShop eShop 300 276 82.5 92 42 26 65 eShop eShop 325 295 90.5 102 45 28 70 (eShop) eShop 355 320 97 108 48 32.5 75 (eShop) eShop 360 330 103.5 113 51 34 80 (eShop) eShop 440 362 110 125 57 36.5 85 (eShop) eShop 440 362 117 128 57 36.5 ​ Ratchet ring spanner for union nuts Sturdy shank with split ring, which can be assembled around the hexagon nut. The split ring can be used like a ratchet. Size 8–11 – With hexagonal ring. Size 12–30 – With bi-hex. Application: Predominantly for union nuts on pipework. 61 9300 Width across flats mm 8 10 11 12 13 14 16 17 18 19 22 24 27 30 61 9300 Ratchet ring spanner (eShop) eShop (eShop) eShop eShop eShop (eShop) eShop (eShop) eShop eShop eShop (eShop) eShop 63V overall length mm 139.5 139.5 139.5 139.5 139.5 191 191 191 191 191 233 235 325 325 480
