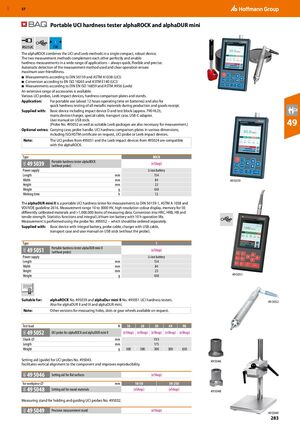

Ручные и измерительные инструменты Hoffmann Group 2026 - страница 283

GBP 57 ​ Portable UCI hardness tester alphaROCK and alphaDUR mini i RS232C Cal The alphaROCK combines the UCI and Leeb methods in a single compact, robust device. The two measurement methods complement each other perfectly and enable hardness measurements in a wide range of applications – always quick, flexible and precise. Automatic detection of the measurement method used and clear operation ensure maximum user-friendliness. ■ Measurements according to DIN 50159 and ASTM A1038 (UCI) ■ Conversion according to EN ISO 18265 and ASTM E140 (UCI) ■ Measurements according to DIN EN ISO 16859 and ASTM A956 (Leeb) An extensive range of accessories is available: Various UCI probes, Leeb impact devices, hardness comparison plates and stands. Application: For portable use (about 12 hours operating time on batteries) and also for quick hardness testing of all metallic materials during production and goods receipt. Supplied with: Basic device including impact device D and test block (approx. 790 HLD), mains device/charger, special cable, transport case, USB-C adapter. User manual on USB stick. (Probe No. 495052 as well as suitable Leeb packages are also necessary for measurement.) Optional extras: Carrying case, probe handle. UCI hardness comparison plates in various dimensions, 49 including ISO/ASTM certificate on request, UCI probe or Leeb impact devices. Note: The UCI probes from 495051 and the Leeb impact devices from 495024 are compatible with the alphaROCK. Type ROCK Portable hardness tester alphaROCK 49 5039 49G (eShop) (without probe) Power supply Li-ion battery Length mm 154 Width mm 84 49 5039 Height mm 23 Weight g 430 Working time h 12 The alphaDUR mini II is a portable UCI hardness tester for measurements to DIN 50159-1, ASTM A 1038 and VDI/VDE guideline 2616. Measurement range 10 to 3000 HV, high-resolution colour display, memory for 50 differently calibrated materials and >1,000,000 items of measuring data. Conversion into HRC, HRB, HB and tensile strength. Statistics functions and integral Lithium-ion battery with 10 h operation life. Measurement is performed using the probe No .495052 − which should be ordered separately. Supplied with: Basic device with integral battery, probe cable, charger with USB cable, transport case and user manual on USB stick (without the probe). Type 1 Portable hardness tester alphaDUR mini II 49 5051 49G (eShop) (without probe) Power supply Li-ion battery Length mm 154 Width mm 84 Height mm 23 Weight g 430 49 5051 Suitable for: alphaROCK No. 495039 and alphaDur mini II No. 495051 UCI hardness testers. 49 5052 Also for alphaDUR II and III and alphaDUR mini. Note: Other versions for measuring holes, slots or gear wheels available on request. Test load N 10 20 30 49 98 49 5052 49G UCI probe for alphaROCK and alphaDUR mini II (eShop) (eShop) (eShop) (eShop) (eShop) Shank ⌀ mm 19.5 Length mm 175 Weight g 300 300 300 300 650 Setting aid (guide) for UCI probes No. 495043. 49 5046 Facilitates vertical alignment to the component and improves reproducibility. 49 5046 Setting aid for flat surfaces (eShop) 49G for workpiece ⌀ mm 10-50 50-250 49 5048 49G Setting aid for round materials (eShop) (eShop) 49 5048 Measuring stand for holding and guiding UCI probes No. 495052. 49 5049 Precision measurement stand (eShop) 49G 49 5049 283
