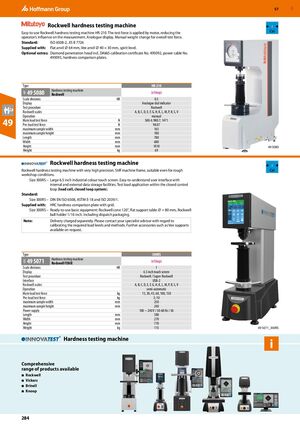

GBP 57 Rockwell hardness testing machine i Easy-to-use Rockwell hardness testing machine HR-210. The test force is applied by motor, reducing the Cal operator’s influence on the measurement. Analogue display. Manual weight change for overall test force. Standard: ISO 6508-2, JIS B 7726 Supplied with: Flat anvil ⌀ 64 mm, Vee anvil ⌀ 40 × 30 mm, spirit level. Optional extras: Diamond penetration head incl. DAkkS calibration certificate No. 495092, power cable No. 495093, hardness comparison plates. Type HR-210 Hardness testing machine 49 5080 (eShop) 44F Rockwell Scale divisions HR 0.5 Display Analogue dial indicator Test procedure Rockwell Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V Operation manual 49 Main load test force Pre-load test force maximum sample width mm N N 588.4; 980.7; 1471 98.07 165 maximum sample height mm 180 Length mm 780 Width mm 680 Height mm 1010 49 5080 Weight kg 69 Rockwell hardness testing machine i Rockwell hardness testing machine with very high precision. Stiff machine frame, suitable even for rough Cal workshop conditions. Size 300RS – Large 6.5 inch industrial colour touch screen. Easy-to-understand user interface with internal and external data storage facilities. Test load application within the closed control loop (load cell, closed loop system). Standard: Size 300RS – DIN EN ISO 6508, ASTM E-18 and ISO 2039/1. Supplied with: HRC hardness comparison plate with grid. Size 300RS – Ready-to-use basic equipment: Rockwell cone 120°, flat support table ⌀ = 80 mm, Rockwell ball holder 1/16 inch. Including dispatch packaging. Note: Delivery charged separately. Please contact your specialist advisor with regard to calibrating the required load levels and methods. Further accessories such as Vee supports available on request. Type 300RS Hardness testing machine 49 5071 49G (eShop) Rockwell FENIX Scale divisions HR 1 Display 6.5 inch touch screen Test procedure Rockwell / Super-Rockwell Interface USB-2 Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V Operation semi-automatic Main load test force kg 15, 30, 45, 60, 100, 150 Pre-load test force kg 3; 10 maximum sample width mm 250 maximum sample height mm 240 Power supply 100 − 240 V / 50-60 Hz / 3A Length mm 580 Width mm 270 Height mm 770 Weight kg 115 49 5071_300RS Hardness testing machine Comprehensive range of products available ■ Rockwell ■ Vickers ■ Brinell ■ Knoop 284
