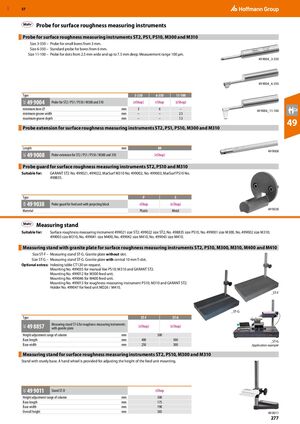

GBP 57 ​ Probe for surface roughness measuring instruments Probe for surface roughness measuring instruments ST2, PS1, PS10, M300 and M310 ​ Size 3-350 – Probe for small bores from 3 mm. Size 6-350 – Standard probe for bores from 6 mm. Size 11-100 – Probe for slots from 2.5 mm wide and up to 7.5 mm deep. Measurement range 100 µm. 49 9004_3-350 49 9004_6-350 Type 3-350 6-350 11-100 49 9004 Probe for ST2 / PS1 / PS10 / M300 and 310 (eShop) eShop (eShop) 43C minimum bore ⌀ mm 3 6 – 49 9004_11-100 minimum groove width mm – – 2.5 maximum groove depth mm – – 7.5 Probe extension for surface roughness measuring instruments ST2, PS1, PS10, M300 and M310 ​ 49 Length mm 80 49 9008 49 9008 Probe extension for ST2 / PS1 / PS10 / M300 and 310 (eShop) 43C Probe guard for surface roughness measuring instruments ST2, PS10 and M310 ​ Suitable for: GARANT ST2 No. 499021, 499022, MarSurf M310 No. 499002, No. 499003, MarSurf PS10 No. 498835. Type P S 49 9038 40N Probe guard for feed unit with projecting block eShop (eShop) Material Plastic Metal 49 9038 ​ Measuring stand Suitable for: Surface roughness measuring instrument 499021 size ST2; 499022 size ST2, No. 498835 size PS10, No. 499001 size M300, No. 499002 size M310; 499003 size M310, No. 499041 size M400, No. 499042 size M410, No. 499043 size M410. Measuring stand with granite plate for surface roughness measuring instruments ST2, PS10, M300, M310, M400 and M410 Size ST-F – Measuring stand ST-G. Granite plate without slot. Size ST-G – Measuring stand ST-G. Granite plate with central 10 mm T-slot. Optional extras: Indexing table CT120 on request. Mounting No. 499035 for manual Vee PS10; M310 and GARANT ST2. Mounting No. 499012 for M300 feed unit. Mounting No. 499046 for M400 feed unit. Mounting No. 499013 for roughness measuring instrument PS10; M310 and GARANT ST2. Holder No. 499047 for feed unit MD26 / M410. _ST-F _ST-G Type ST-F ST-G Measuring stand ST-G for roughness measuring instruments 49 8857 (eShop) (eShop) 43C with granite plate Height adjustment range of column mm 300 Base length mm 400 500 _ST-G Base width mm 250 300 Application example Measuring stand for surface roughness measuring instruments ST2, PS10, M300 and M310 ​ Stand with sturdy base. A hand wheel is provided for adjusting the height of the feed unit mounting. 49 9011 Stand ST-D eShop 43C Height adjustment range of column mm 300 Base length mm 175 Base width mm 190 Overall height mm 385 49 9011 277
