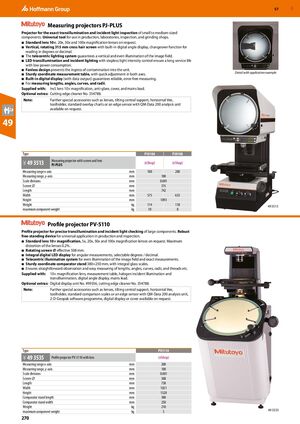

GBP 57 ​ Measuring projectors PJ-PLUS Projector for the exact transillumination and incident light inspection of small to medium-sized components. Universal tool for use in production, laboratories, inspection, and grinding shops. ■ Standard lens 10×. 20x, 50x and 100x magnification lenses on request. ■ Vertical, rotating 315 mm cross hair screen with built-in digital angle display, changeover function for reading in degrees or decimal. ■ The telecentric lighting system guarantees a vertical and even illumination of the image field. ■ LED transillumination and incident lighting with stepless light intensity control ensure a long service life with low power consumption. ■ Fanless design prevents the ingress of contamination into the unit. ■ Sturdy coordinate measurement table, with quick adjustment in both axes. Detail with application example ■ Built-in digital display (with data output) guarantees reliable, error-free measuring. ■ For measuring lengths, angles, curves, and radii. Supplied with: Incl. lens 10× magnification, anti-glare, cover, and mains lead. Optional extras: Cutting edge cleaner No. 354788. Note: Further special accessories such as lenses, tilting central support, horizontal Vee, toolholder, standard overlay charts or an edge sensor with QM-Data 200 analysis unit available on request. 49 Type P1010A P2010A Measuring projector with screen and lens 49 3513 44C (eShop) (eShop) PJ-PLUS Measuring range x-axis mm 100 200 Measuring range, y-axis mm 100 Scale divisions mm 0.001 Screen ⌀ mm 315 Length mm 742 Width mm 575 633 Height mm 1093 Weight kg 114 118 49 3513 maximum component weight kg 10 8 ​ Profile projector PV-5110 Profile projector for precise transillumination and incident light checking of large components. Robust free-standing device for universal application in production and inspection. ■ Standard lens 10× magnification. 5x, 20x, 50x and 100x magnification lenses on request. Maximum distortion of the lenses 0.2%. ■ Rotating screen ⌀ effective 508 mm. ■ Integral digital LED display for angular measurements, selectable degrees / decimal. ■ Telecentric illumination system for even illumination of the image field and exact measurements. ■ Sturdy coordinate comparator stand 380×250 mm, with integral glass scales. ■ Ensures straightforward observation and easy measuring of lengths, angles, curves, radii, and threads etc. Supplied with: 10× magnification lens, measurement table, halogen incident illumination and transillumination, digital angle display, mains lead. Optional extras: Digital display unit No. 499356, cutting edge cleaner No. 354788. Note: Further special accessories such as lenses, tilting central support, horizontal Vee, toolholder, standard comparison scales or an edge sensor with QM-Data 200 analysis unit, 2-D-Geopak software programme, digital display or cover available on request. Type PV5110 49 3535 44C Profile projector PV-5110 with lens (eShop) Measuring range x-axis mm 200 Measuring range, y-axis mm 100 Scale divisions mm 0.001 Screen ⌀ mm 508 Length mm 738 Width mm 1021 Height mm 1520 Comparator stand length mm 380 Comparator stand width mm 250 Weight kg 210 maximum component weight kg 5 49 3535 270
